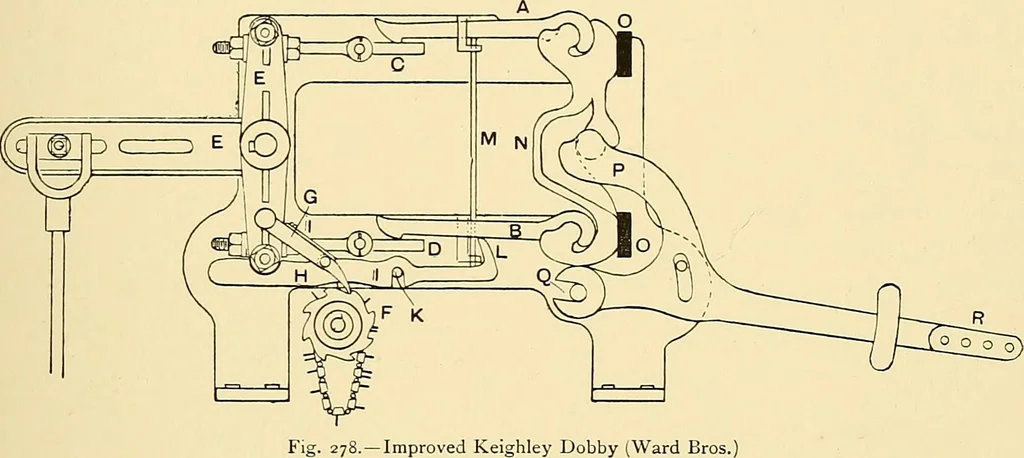

the knivesfixed on their ends. Instead of having an independent motion, thelag cylinder derives its rotation from the triple-armed lever. On thelower vertical arm a ratchet pawl is fixed which engages with theend of the cylinder barrel, which, being octagonal in form, lendsitself to the purpose. At… … A B are the hooks, and c D the draw knives, driven by the three-armed lever E. F, The lag barrel turned onenotch at a time by the pawl G, which is jointed at H and held stiff by the spring i, which, however, gives in caseof any obstruction. i is the lever on which the lags act. It is hinged at K,…
