The textile industries : a practical guide to fibres, yarns & fabrics in every branch of textile manufacture, including preparation of fibres, spinning, doubling, designing, weaving, bleaching, printing, dyeing and finishing (1910)
Murphy, William S · London : The Gresham Publishing Company · leaf 225

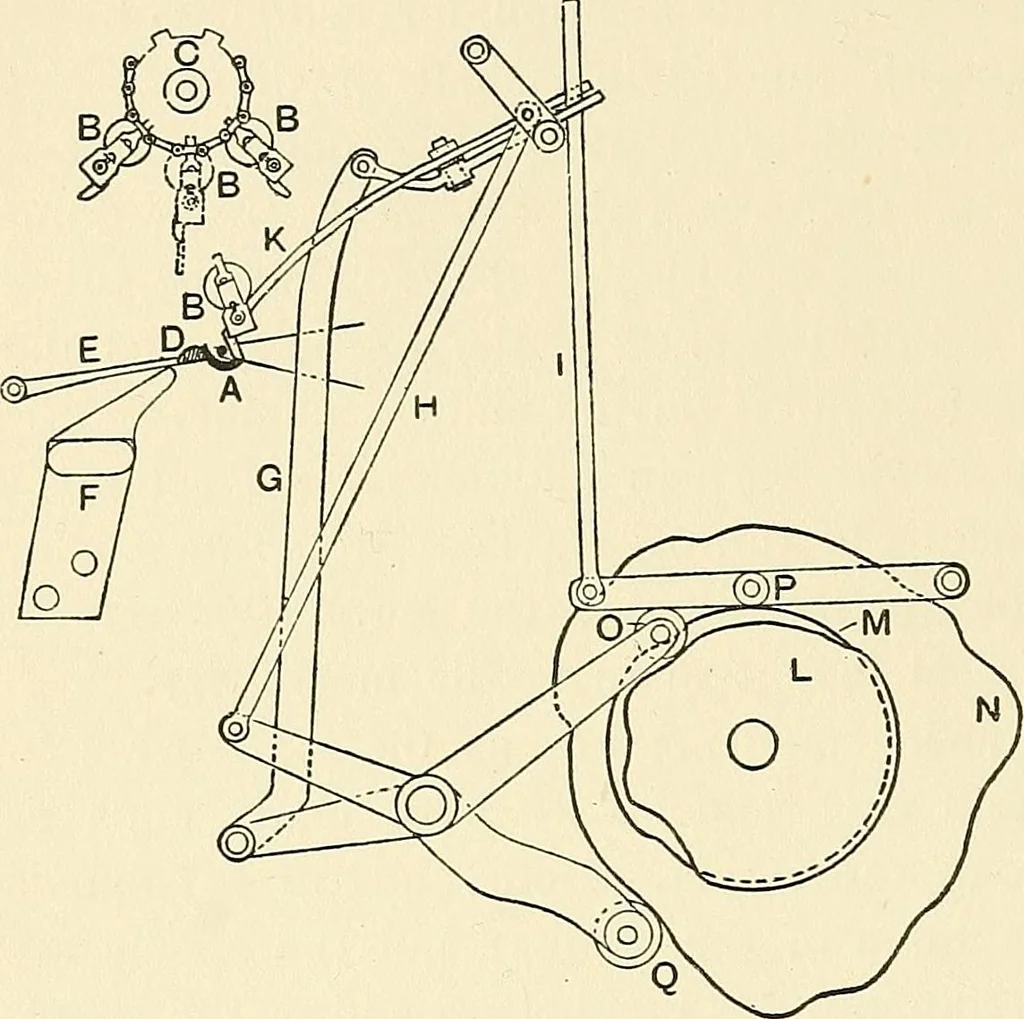

t supported by the loom frame,and moves freely upon it; the free end of this short lever holds aswing shaft in position above the warp threads. Stretching acrossthe whole loom, this lever is connected with a pair of levers, one ateach side, which are of the utmost importance. Fixing our… … Fig. 475.—Transferring Motions A, Tuft. B, B, Tuft carriers. C, Sprocket-wheel. D, Tuft-arrestingbar. E, Lever to lift the bar D. F, Breast beam. G, H, I, Leversactuating the transferring arm K and taking their motion from thetappets L, M, N, by means of the bowls O, P, Q. MACHINE-MADE TUFTED…
Textile industry · Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
