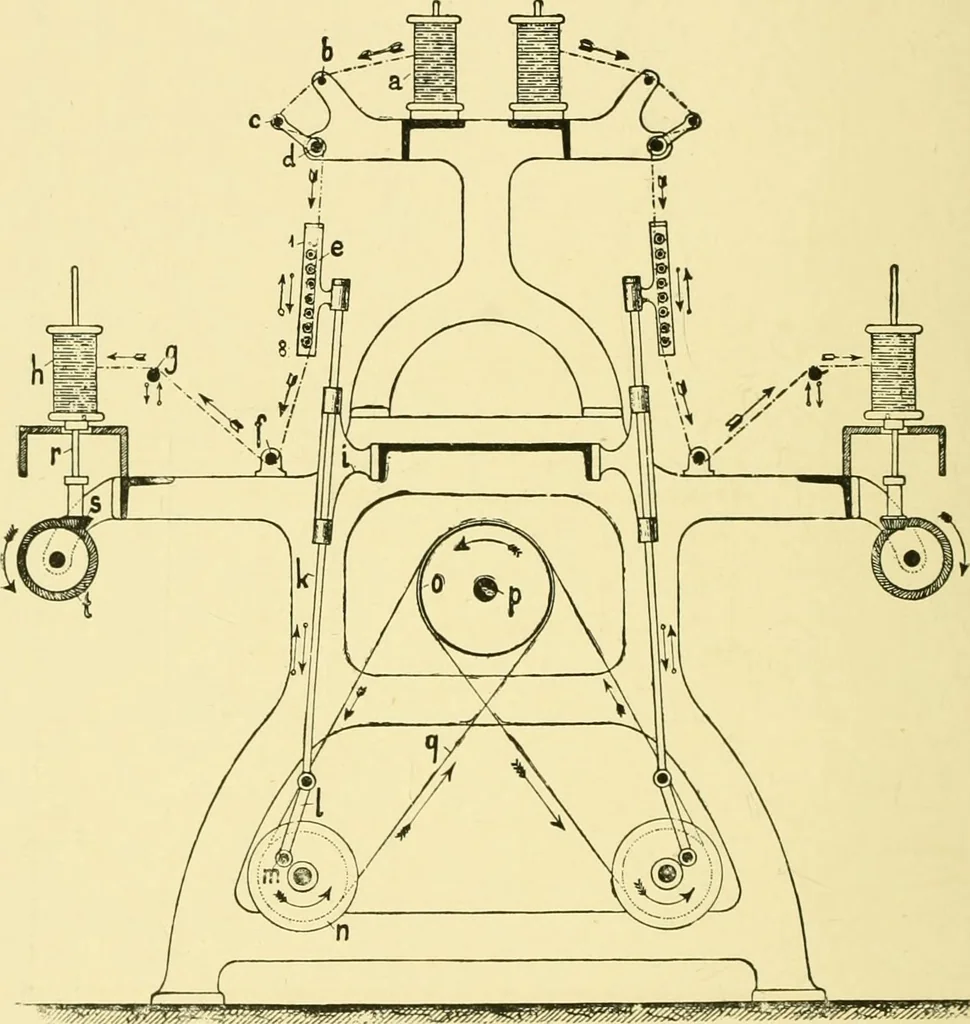

478 TEXTILE RAW MATERIALS. of intensifying their action. The thread passes from thebobbin, a, over the guide rods, d, c, d, then around the rollers,I to 8, on the rising and falling frame, e, after which they gounder the rod, /, and over the slowly rising and falling guide … Fig. 299.—Double Cleaner, with Swinging Rollers. ^^amm^m. rail, ^if, to the bobbin, h. The oscillating movement of theframe, c, is effected by the crank disc, ;/, which is driven by abelt, q, from the pulley, 0, on the main shaft, and actuates thelinked rods, / and k, the latter being guided by the…
