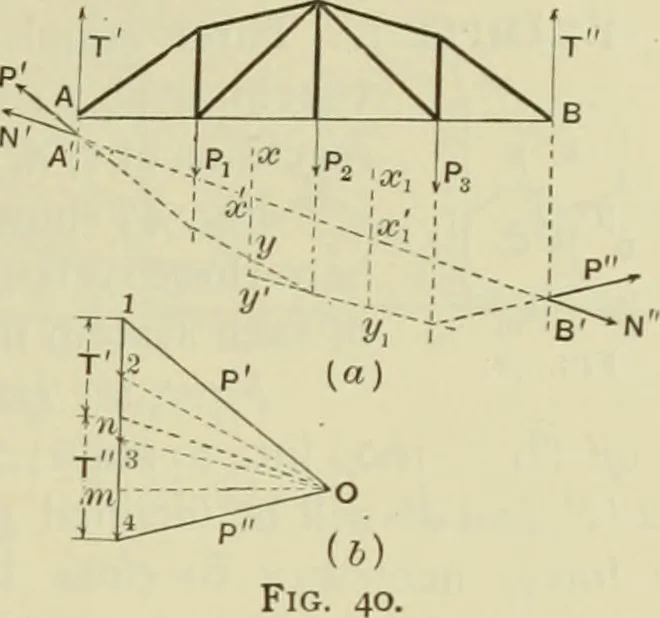

Fig. 39. *The student is assumed to be familiar with the -theory of flexure. If he has not studied this subject, he isreferred to Chap. VIII. APPLICATION OF THE LAWS OF EQUILIBRIUM. The load … 43. Parallel Forces.—Let P,, P^, and Fig. 40, be a system of parallel, and in this casevertical, forces acting upon any structure with abutments A and B. The abutment reactions, which are both vertical, are found in the usual way.line is the vertical line 1-4. The reactions T and T — 4n and ni…
