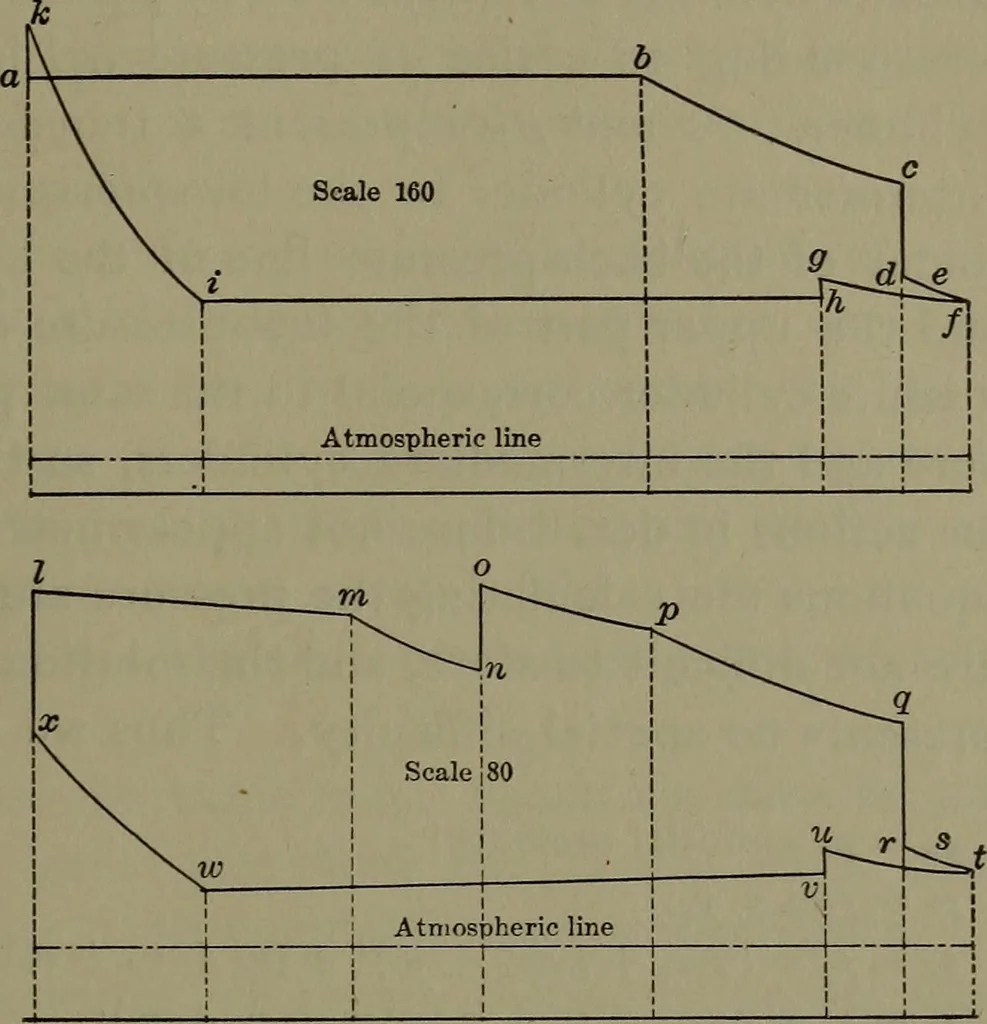

COMPOUND ENGINES. 273 cylinder, and there is a drop cd, and a corresponding rise ofpressure no in the intermediate cylinder. The transfer con-tinues till cut-off for the intermediate cylinder occurs at /,corresponding to the piston position e for the high-pressure … y z ft a r —~—„__111 ~- 6 1 Atmospheric line 1 1 -j I11 V ^ .c 11 Scale 40 € Fig. 66.cylinder. From the position e the high-pressure piston movesto the end of the stroke at/, causing an expansion, and thenstarts to return, causing the compression fg. When thehigh-pressure piston is at g the…
