Training in wood-work, designed for use in manual training and technical school; consisting of three parts: carpentry, wood-turning and pattern work (1902)
Tate, James M. (James Murray), b. 1852 · Minneapolis, Minn., School Education Co · leaf 100

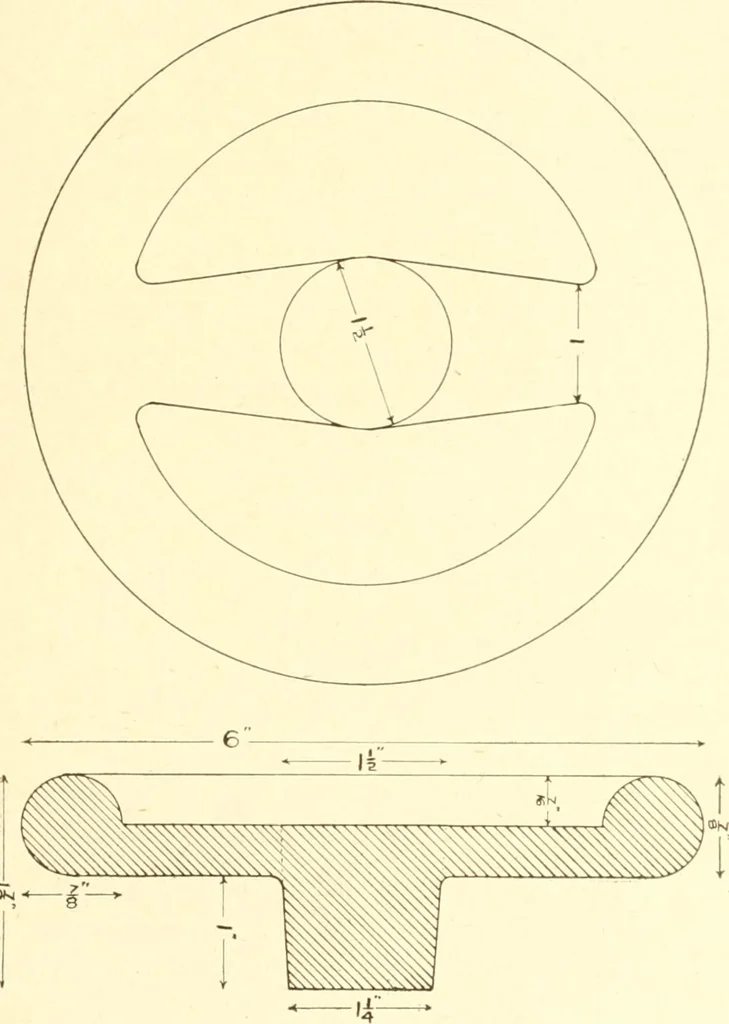

orm. Form the fillet atthe juncture of the head and handle with a knife orgouge. Sandpaper the handle lengthwise with the paperfolded and sprung around the work. Use the sand paper ona block for fiat surfaces. Preserve all sharp corners. Thepattern is now ready for shellac and finishing. MANUAL… … Fig. 167. completed. The ring is 6 inches in diameter and ys inchround. To construct the ring proceed in the following man- g8 MANUAL TRAINING ner: Scribe a circle on a piece of soft pine % inch thickand 6% inches in diameter. Saw to the circle on the bandsaw and attach to the small face-plate by…
Woodwork (Manual training)
