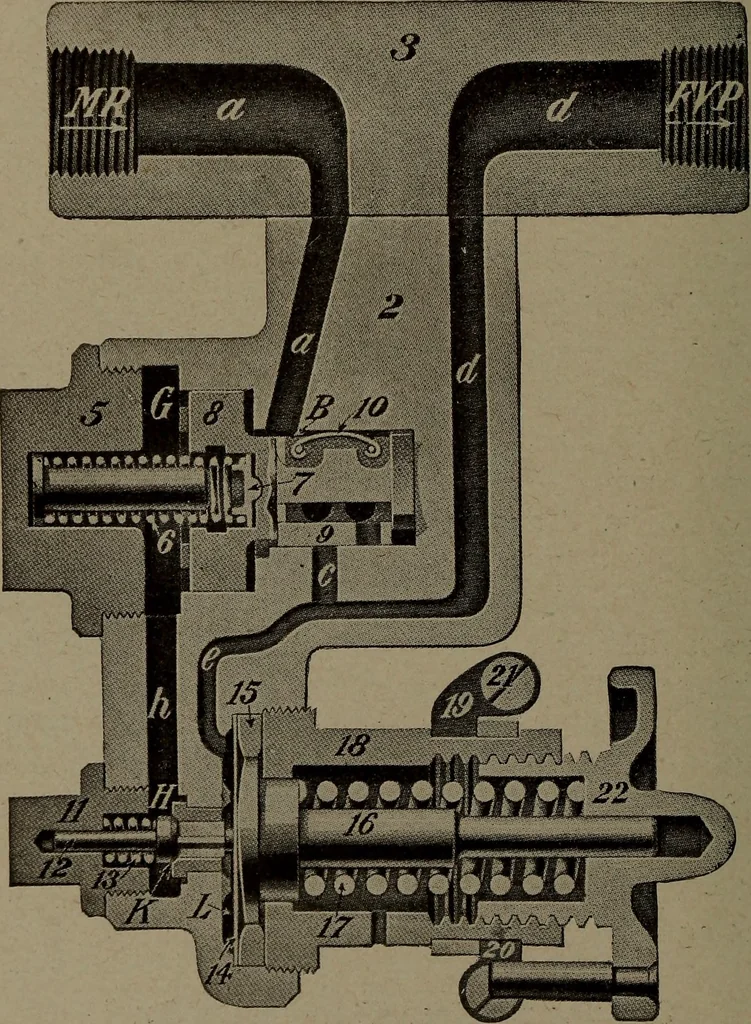

closedposition. Then place the finger over the port E, leadingfrom face of the supply valve. If there is a blow it isthe fault of the supply valve 7 or seat. However, if thereis a blow from the port in the center it is coming past theregulating valve 12. Cleaning the Feed Valve on the Road Q. How… … Fig. 29. Diagram of B-6 Feed Valve, Closed WESTINGHOUSE AIR BRAKE 247 This will drain all the air from the pipes. Then remove thecap nut 5 and pull out the supply piston and valve, remov-ing any dirt from the bushing or valve seat by using ker-osene or signal oil. Do not use any sharp tool. Also…
