Treatise covering operation, defects and remedies of the locomotive, Westinghouse and New York air-brake, also questions and answers to first, second and third year's progressive examinations (1917)
MacDonald, J. R. [from old catalog] · [Chicago] The author · leaf 299

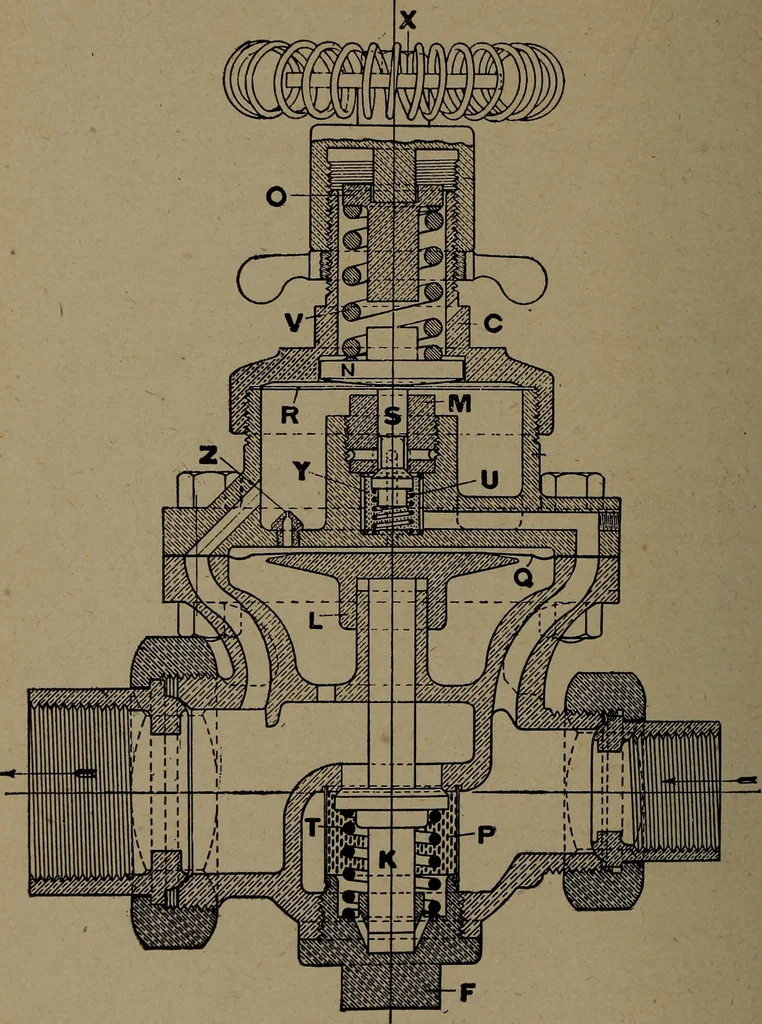

to plug thebroken pipe, and remove the equalizing cap and block theequalizing piston in release position. This is done in orderto prevent the maintaining feature from building up toohigh a pressure in the brake cylinder. BROKEN BRAKE CYLINDER PE?E In event of the brake cylinder pipe breaking off it… … Fig. 43. GqyLp Old Type Steam Eegulator GOULD STEAM HEAT REGULATOR Q. Describe the action of the Gould Regulator. A. By screwing down on the handle X as shown in Fig.43, until the desired pressure is obtained in the system, thecontrolling valve S is opened, steam can now pass up aroundthe…
Locomotives · Westinghouse air-brake · New York air-brake
