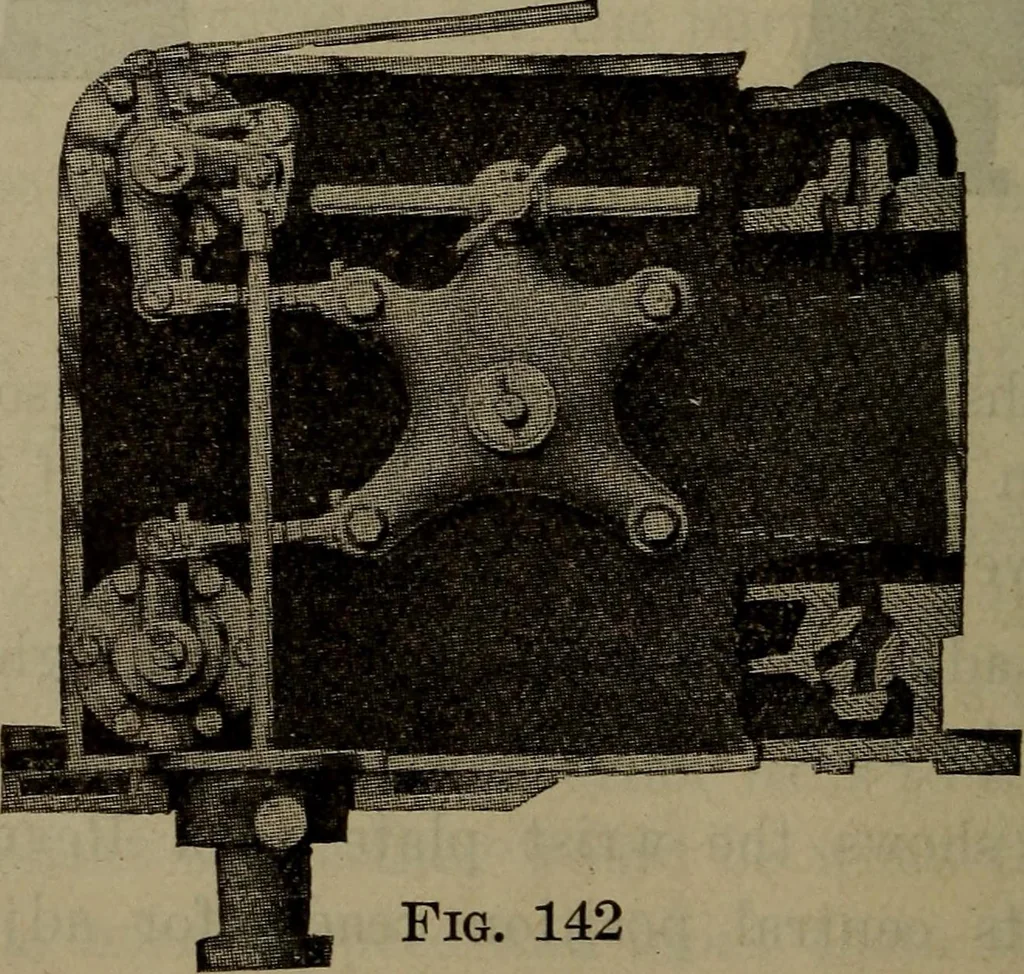

Fig. 141 amount of lead. The exhanst valves wdll be correct if theyhave been set according to table 32—the wrist plate beingcentral. … Pig. 142 shows the wrist plate of a heavy duty or re-liance type Eeynolds Corliss engine in its central position, Valves and Valve Setting 405 ready for adjusting the lengths of the valve rods. Thevalves in this type of engines are double ported. Fig. 143 shows the position of the wrist plate of a…
