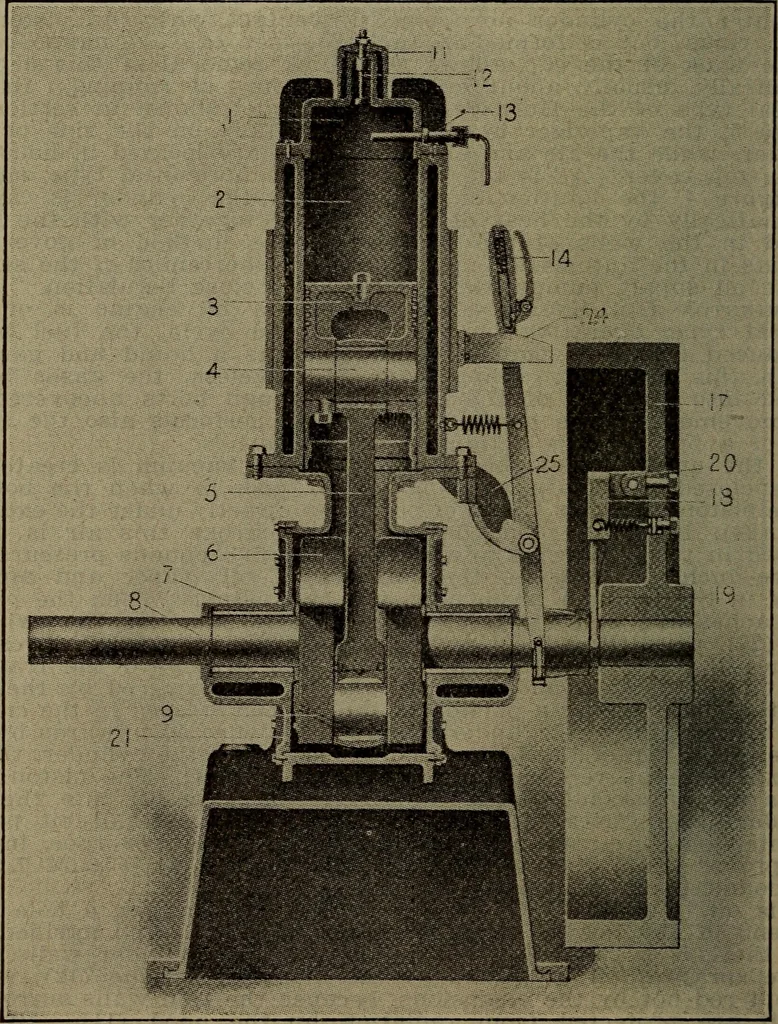

fresh air into the crankcase and compresses the air trans-ferred to the cylinder. Each down-stroke is a power stroke andat the same time compresses the air in the crankcase prepara- SlOh Steam Engineering tory to transferring- it to the cylinder by its own pressure at theend of the stroke. The same… … 1 Cylinder head. 2 Cylinder. 3 Piston. 4 Wrist pin. 5 Connecting rod. 6 Counter balance weights. FIG. 7Names of Parts. 7 Main bearing cap. 8 Crankshaft and crankpin. 9 Crank oil hole. 10 Crankcase. 11 Hood on cylinder head. 12 Igniter plug: of nickel steel. Oil Engines 810i Governor and…
