Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise .. (1916)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago, F.J. Drake & company · leaf 522

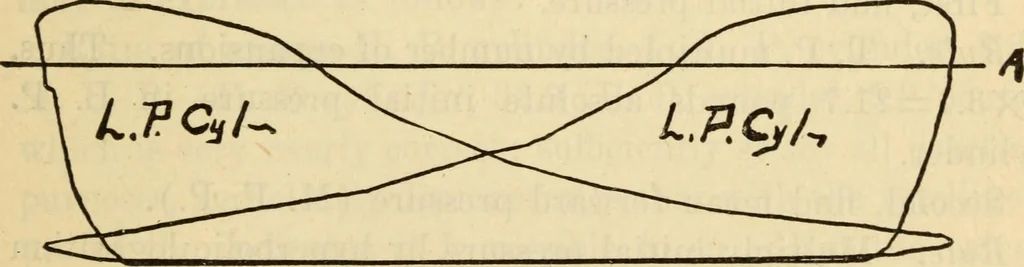

Fig. 196 pheric line, showing that the exhaust is in no way restrictedor cramped. I. H. P. is 65.7 and steam consumption 21pounds per I. H. P. per hour. … Fig. 197 Figs. 196 and 197 are diagrams taken from a cross com-pound condensing Corliss engine. The high pressure cylin-der was 24x48 inches, and the low pressure cylinder was44x48 in. The steam from the high pressure exhausted 510 Steam Engineering into a receiver, and from thence into the low…
