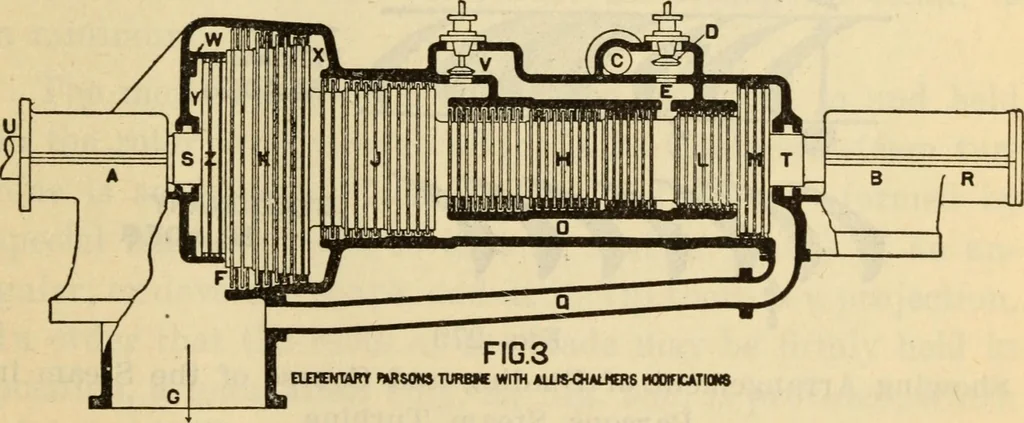

T ==.| ELEMENTARY PARSONS TYPE STEAM TURBINE Fig. 277 the low pressure cylinder of a compound reciprocating en-gine. Valve V is arranged to be operated, either by thegovernor or by hand, as the conditions may require. Fric- … FIG.3 ELEMENTARY PARSONS TURBtC WITH ALUS-CHALMERS MOOTCATI0N8 Fig. 278 tionless glands made tight by water packing are providedat S and T where the shaft passes out of the cylinder. Theshaft is extended at U and connected to the generator shaftby a flexible coupling. 652 Steam Engineering The…
