Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 516

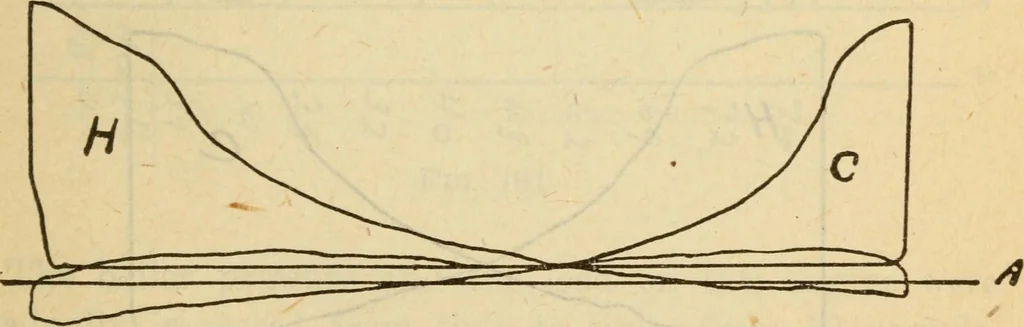

Fig. 187 also to make a series of tests for the purpose of ascertainingthe amount of power delivered by the engine to each one ofseveral different departments which were receiving powerfrom this source. … Fig. ISS The dimensions of the engine were as follows: bore ofcylinder, 32 in.; stroke, 5 ft. At the time Fig. 188 wastaken the engine was making 62 E. P. M. and the boilerpressure was only 50 pounds. A 30 spring was used.Although the load on the engine was very light at the time. 504 Steam…
