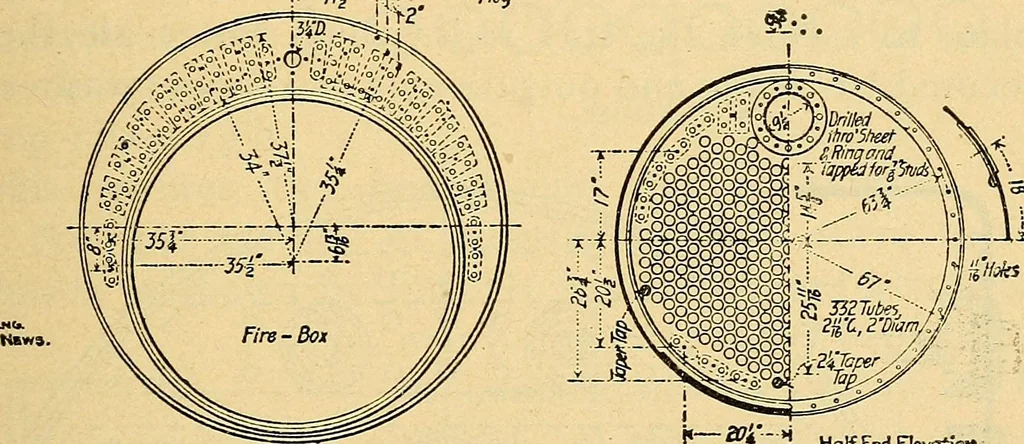

Vertical Section A-B. nog … End Elevation,Sfiowing Attachment of Long. Stays. fc—fl^-H Half End ElevationHalf Section C-D. j of Smoke-Box. FIGURE 105. be placed far enough apart to allow a man to passbetween them for the purposes of inspection and wash-ing out of the boiler. Through stay rods are usuallyspaced 14 in. apart…
