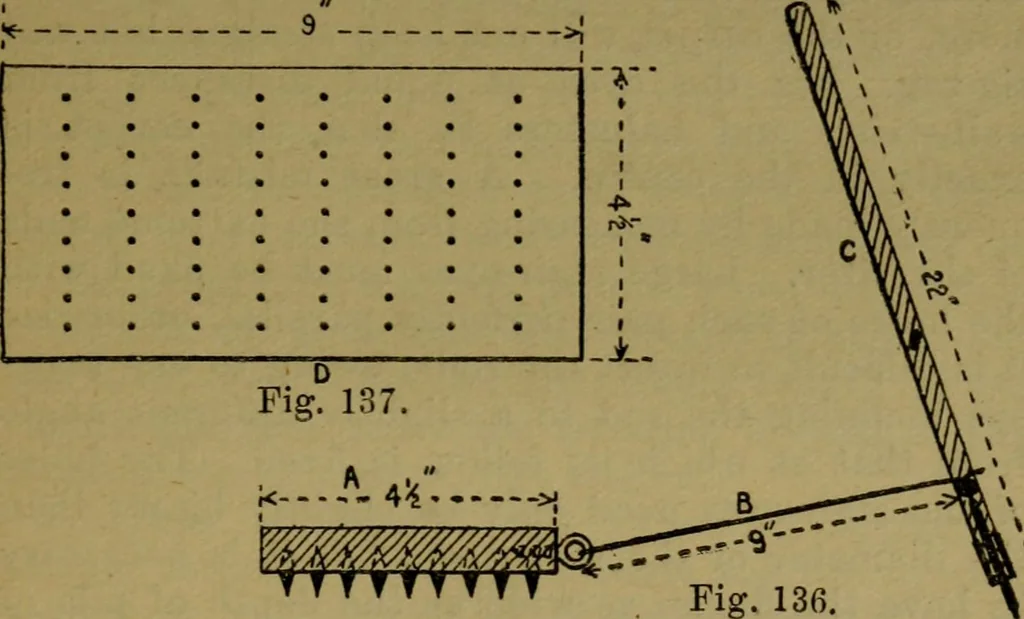

rth andfifth row of nails, insert a stout screw-eye. Thelever, c, is 22 in. long (a piece of broom-handlewill do very well) and it has a ferrule on the end.Cut the head off a large wire nail, and drive thenail into the ferrule end of the handle, so thatabout 1 in. will project. File this projecting… … Figs. 136 and 137.—Carpet Stretcher with Spikes. \ in. on each side. Take a piece of strong wire,b (say, 12-gauge), 20 in. long, pass it through thescrew-eye, and double it to form a loop ; then witheach end of this wire take a turn round the rivet inthe handle (one end of wire on each side…
