Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 104

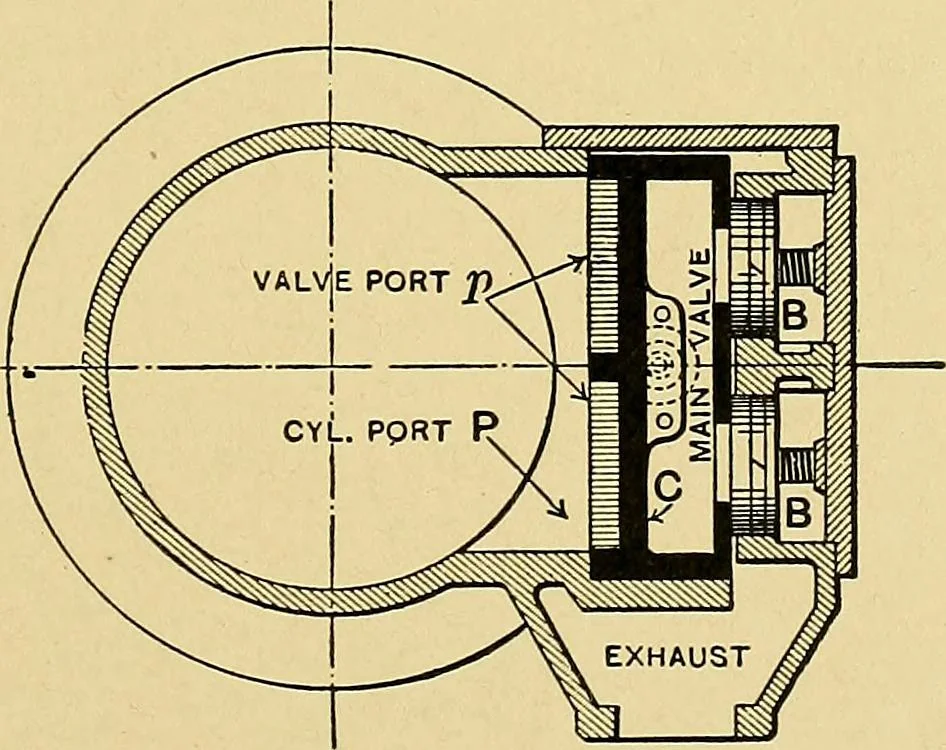

STEAM CHAMBER FIG. 96. — HORIZONTAL SECTION. and valve gear. As shown by Figs. 96 and 98, the valve chest is dividedby partitions into two separate and distinct parts, a steam chamber andan exhaust chamber. The main valve is a flat hollow box of the horizontaland vertical sections shown in Figs. 96… … FIG. 97.—VERTICAL SECTION A-B. chamber and working lengthwise of the cylinder. It takes steam into theinterior through the four balance pistons B, which connect it with the 94 VALVE SETTING steam chamber and serve to hold it in place; and steam is admitted tothe cylinder through ports p, which…
Steam-engines
