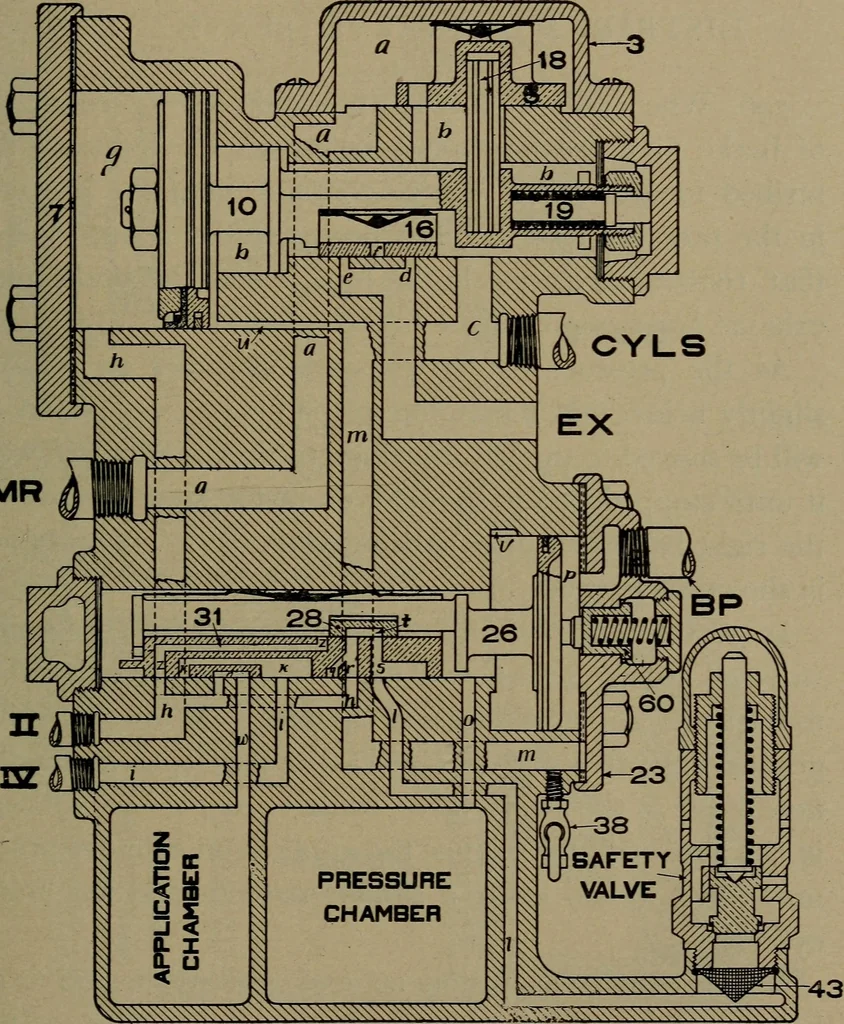

om the main reservoir to flow into chamber by b, andthrough passage c to the brake cylinders. During the movement- just described cavity t in thegraduating valve connects ports r and s in the equalizingvalve and by the same movement ports r and s are broughtto register with ports h and /, in the… … Fig. 59.—Automatic Service. 206 THE DISTRIBUTING VALVE gency application from 70 pounds, brake pipe pressure)limits the brake cylinder pressure to this amount. DISTRIBUTING VALVE, SERVICE LAP 596. When only a partial automatic service reductionof brake pipe pressure has been made, the positions…
