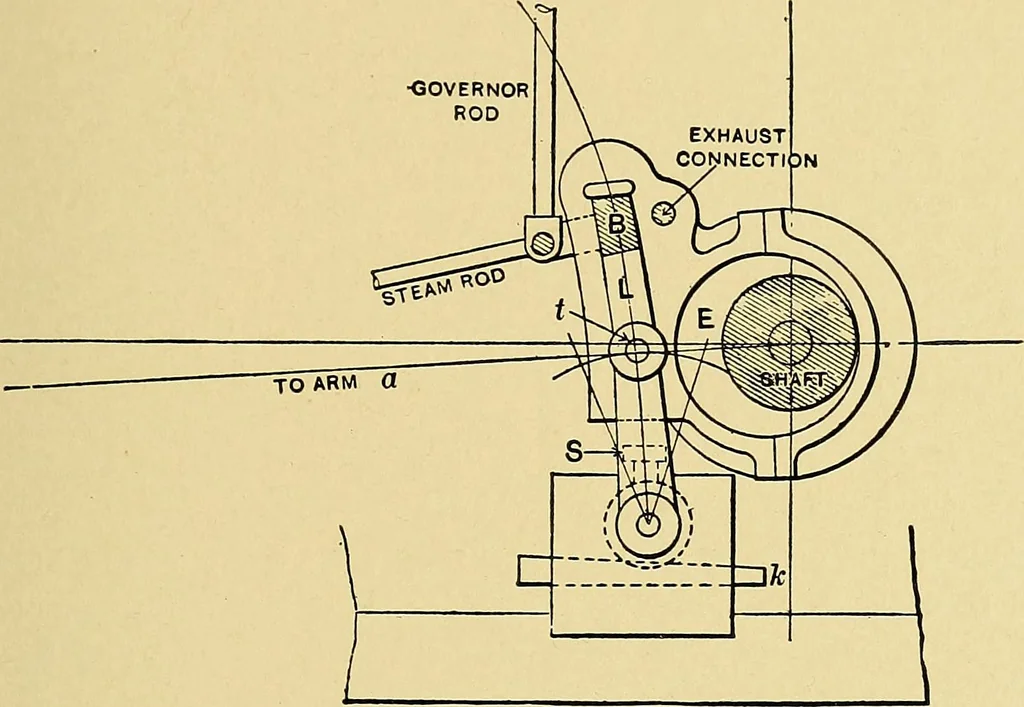

, and this is accomplished hy the time the piston has com-pleted its forward stroke; so that the return stroke is begun with a wideopen release port in front of the piston. Closing does not begin untilthe piston has accomplished more than half stroke, where its speed isdiminishing, so that there is… … FIG. 110.— DETAIL OF LINK. and showing the steam valve on this end lower than on the other, as isalso shown in dotted lines on Fig. 106. The valves consist simply of flatrectangular frames with a central bar for the attachment of the valvestem. The pressure plates of the steam valves are held…
