Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 97

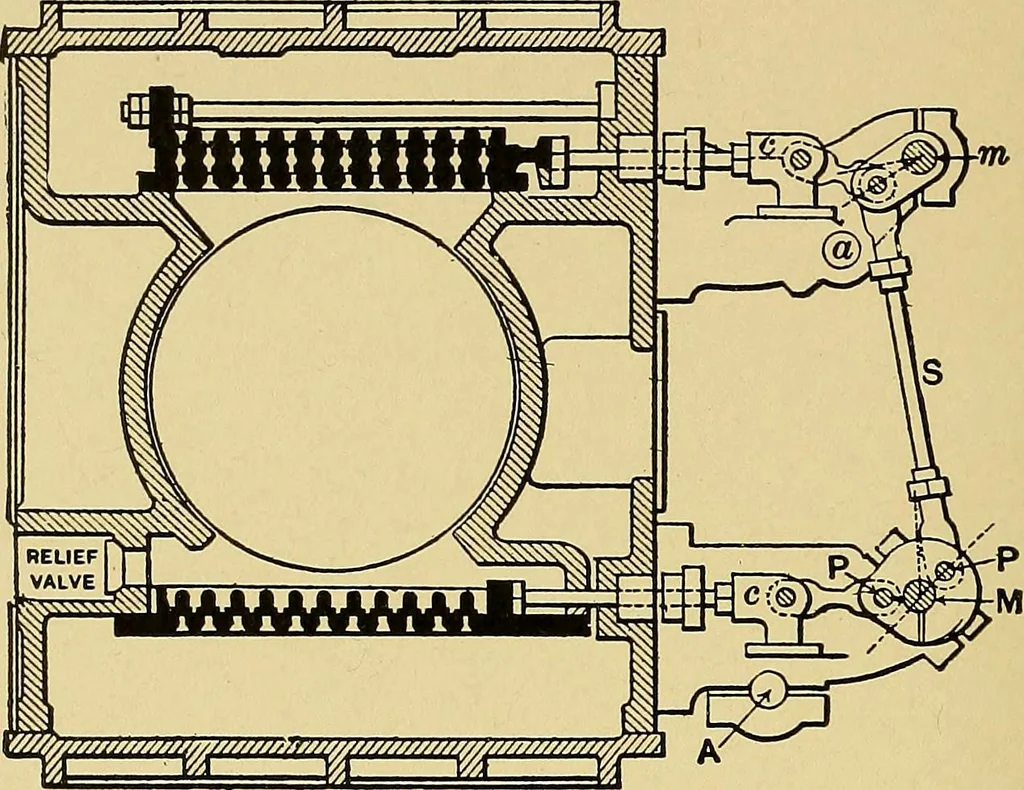

86 VALVE SETTING to give full port opening. This varies from ^ in. to 1^ ins. from thesmallest to the largest size of cylinder. Figs. 86 and 87 show enlarged views of the cylinder and valve gear. … FIG. 86. —DETAILS OF GEAR. and in connection with Figs. 76 and 77 will allow a ready understandingof the valve motion, (The detailed views are stripped as far as possibleof unnecessary details, such as nuts, housings, oil cups, keys, etc.) The
Steam-engines
