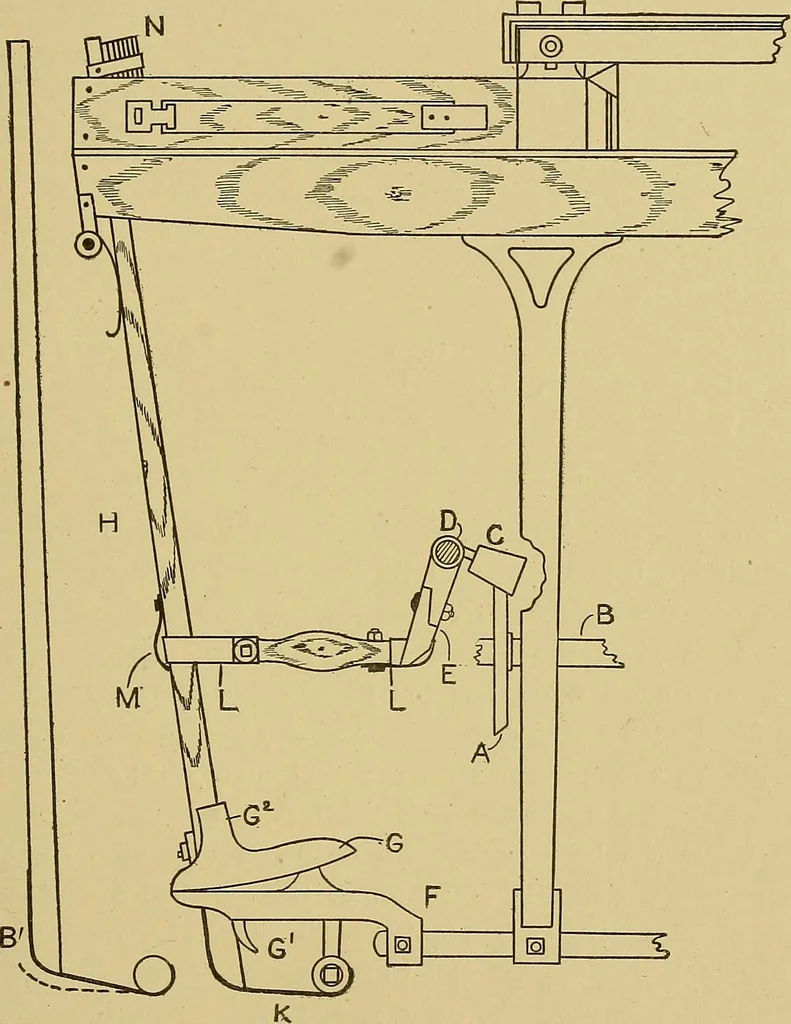

DOBBY LOOM WITH NORTHROP FILLING SUPPLY Mason Machine Co. WEAVING. 109 down on the back, or if the shaft is set in too close to the pick cam,or, as sometimes happens, the cone is out of proportion to the pick-point. In view, then, of the above-mentioned facts, and the adoptionof the shape of binder… … Fig. 74. Cone Pick Motion. edly obtained by applying the power gradually, so that by the timethe full force is acting on the shuttle, it will be leaving the binder,and yet the binder will have helped to keep the shuttle in contactwith the back of the box, so that if guided straight from the…
