Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)

American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 178

An illustration from Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving, 1909, leaf 178

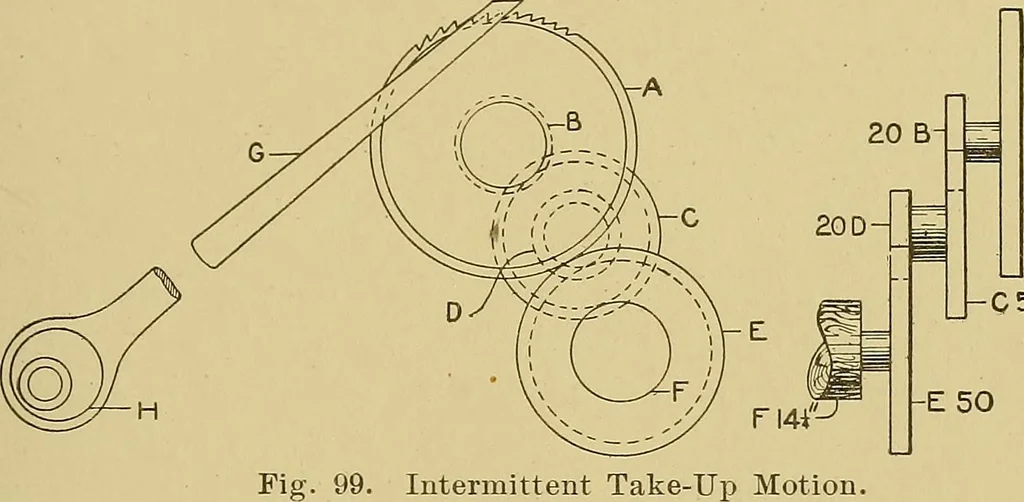

of the number of picks per inch, so that these motions are gener-ally used in the weaving of coarse goods. The most common range or train of gears is such as shown inFig. 98. This motion allows a very wide range for changing, butwhen, as sometimes happens, an order necessitates a half pick… … C54 Intermittent Take-Up Motion. lever commonly called the take-up lever. This lever receivesmotion from a cam fixed on the pick-cam shaft. Sometimes thecam is on the crank shaft. On other looms the motion as inFig. 98, is imparted by the lay sword. Whatever kind of motionis used, it is best, so…
