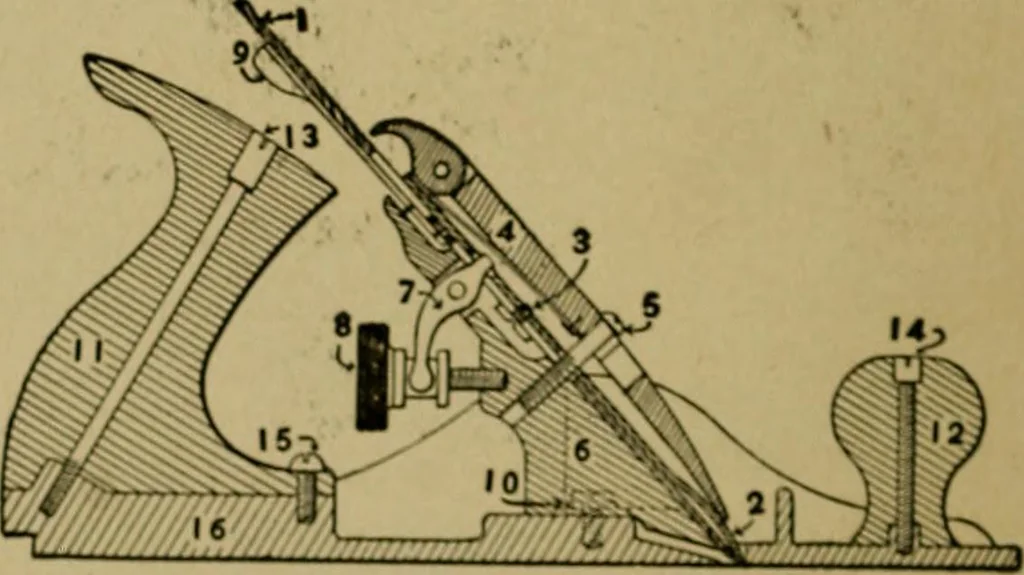

Plane Iron. Plane Iron Cap. Plane Iron Screw. Cap. Cap Screw Frog. Y Adjustment. Brass Adjusting Nut. Lateral Adjustment Frog Screw. Handle. Knob. Handle Boltand Nul Knob Bolt and Nut. Handle Screw. Bottom. … Fig. 10 Section of Plane WOODWORK FOR THE GRADES 21 moves the plane-bit, so it will cut more nearly square across ormore at one side or the other as desired. The milled thumb-nut 8 is used to move the bit endwiseso it will project more beyond the bottom or sole of the plane,or to withdraw it so it…
