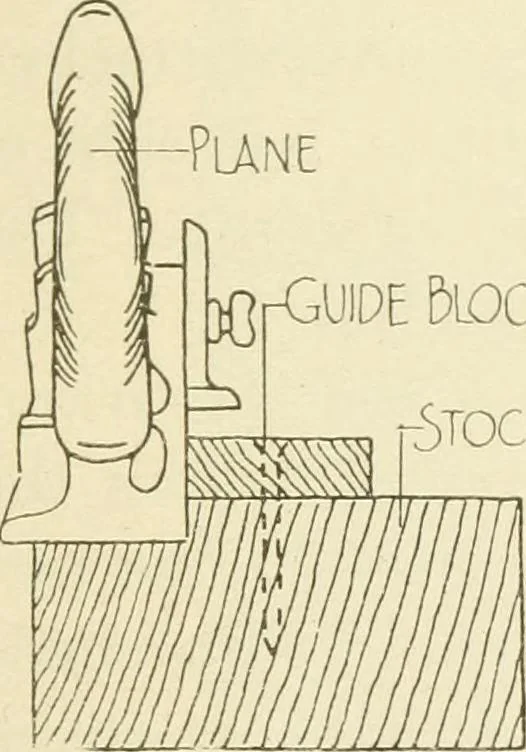

o aggravate the difficulty.When this happens it is best to stopplaning and straighten up the ver-tical side of the rabbet by means ofa paring chisel, then proceed. In rabbeting on the reverse sideof stock, small brads are used tofasten a guide or fence against whichthe plane is to be placed in… … )(]pGUIDE &LOCKn)TOCK Fig. 67. Guide forRabbet Plane. 44 WOODWORK FOR SECONDARY SCHOOLS. 61. Rabbet and Filletster Plane.—In Fig. 68 is shownsuch a plane with tw^o seats for the cutter. The forward 5fAT5 fOK CuTTEfl- Depth Gage
