Woolen and worsted finishing; a practical manual of instruction in the methods and machinery used in finishing woolen and worsted goods in general, and the processes involved in the special treatment of all types of standard fabrics (1909)
American School of Correspondence, Timmermann, John F · Chicago, American School of Correspondence · leaf 195

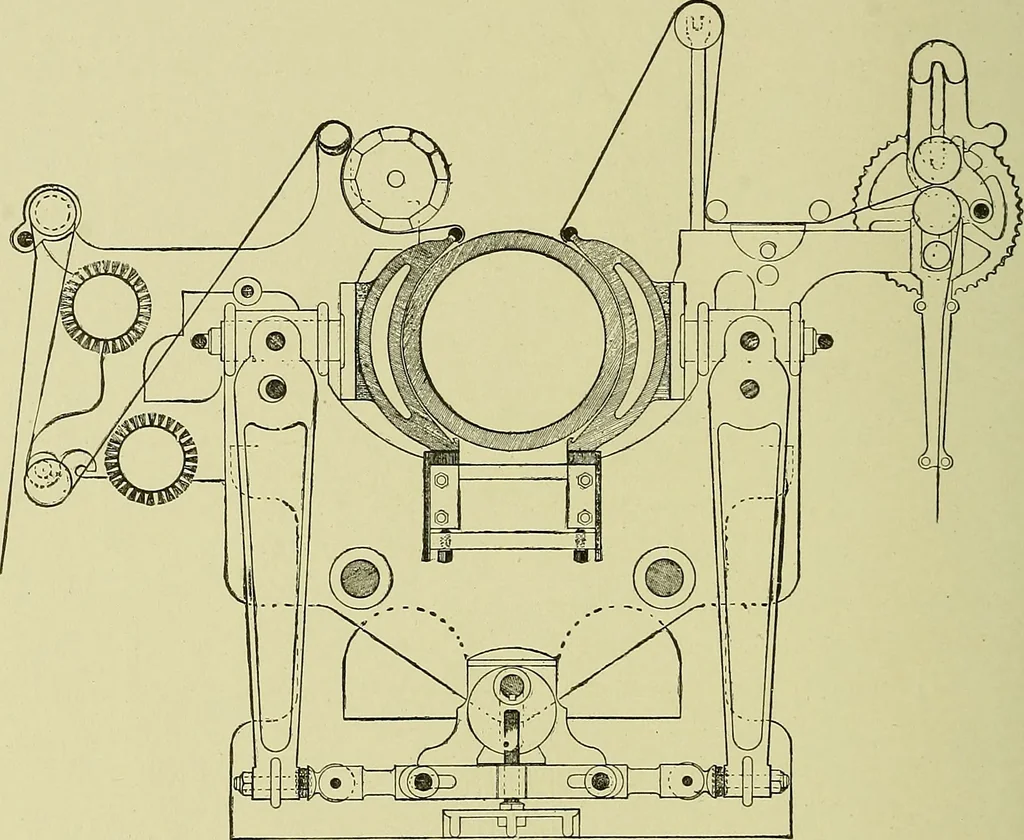

171 164 WOOLEN AND WOESTED FINISHING such cases it is necessary to remove the jacket and attend to thedefect. To remove the jacket from the Old Gessner press proceed asfollows: Draw out all the screws in the bottom of the wings aboutI inch from the feet of the standards, so as to support the… … Fig. 64. End View Voelljer Press. and cylinder; remove the chain belt and the belt on the brushes;run the worm gears on the coil springs back until quite loose; takeout the screws which hold the jacket; run off the nuts from the coilsprings, after first marking their positions so as to replace…
