Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 41

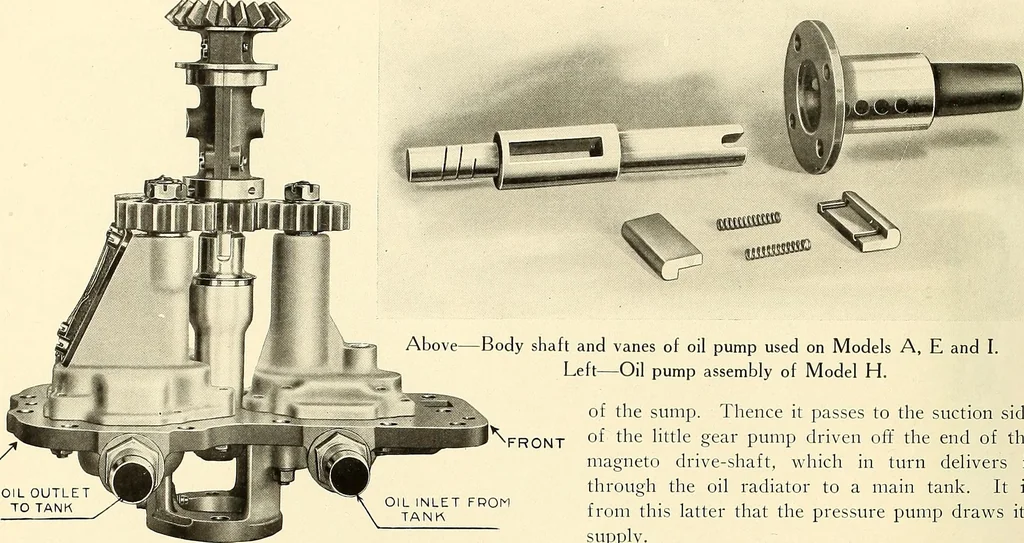

These views show the Model E-2 Wright Enginewith the complete standard equipment, as sent outfrom the Wright plant. V^: =^ 18 WRIGHT AERONAUTICAL ENGINES REAR … «P| Above—Body shaft and vanes of oil pump used on Models A, E and I.Left—Oil pump assembly of Model H. FRONT 14 and 18), but with the difference that there is no suc-tion line inside the crankcase. The lower half of the caseis deepest at the center, and oil escaping from the bear-ings runs out…
Airplanes
