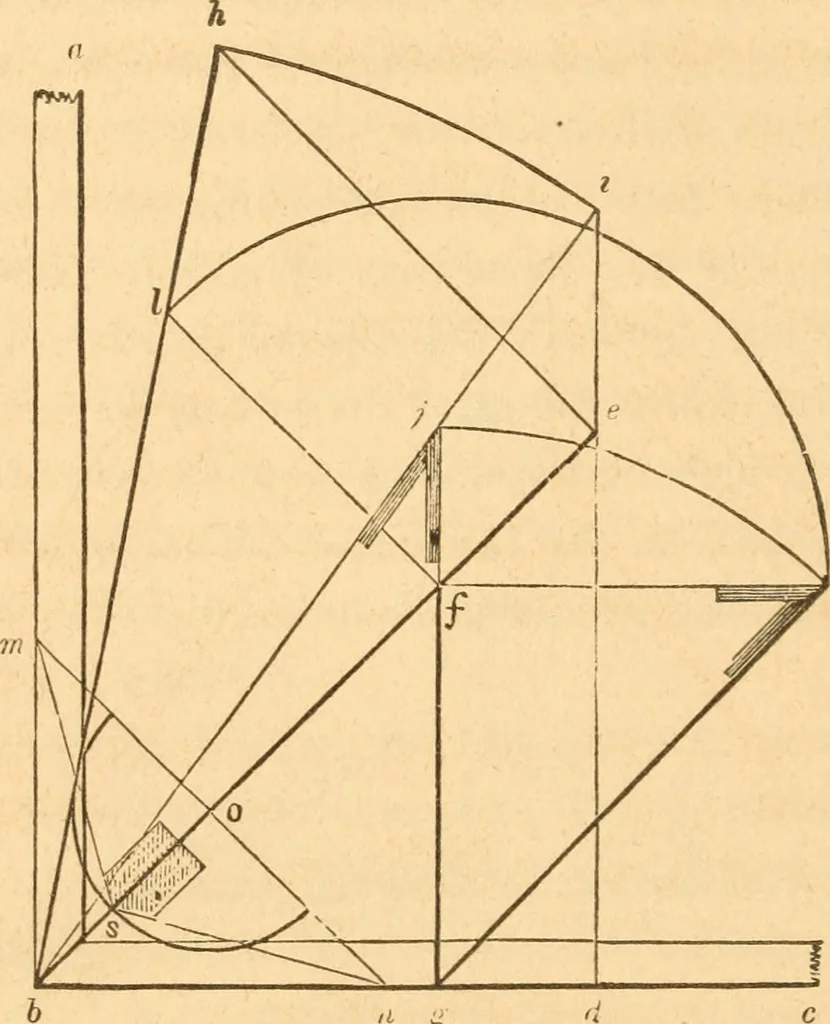

s high as the top of the arch. Then, by using a horizontal tie-beam, the oblique strains will be entirely removed. Many a pub-lic building in this place and vicinity, has been all but ruined bythe settling of the roof, consequent upon a defective plan in theformation of the truss in this respect..… … FliT. 2iJ. 301.—Fig 215 is a meihod of obtaining the proper lengths andbevils for rafters in a hip-roof, a b and b c are walls at the angleof the building : & e is the seat of the hip-rafter and g f of a.jack or cripple rafter. Draw e h, at right angles to b e, and makeit equal to the rise of…
