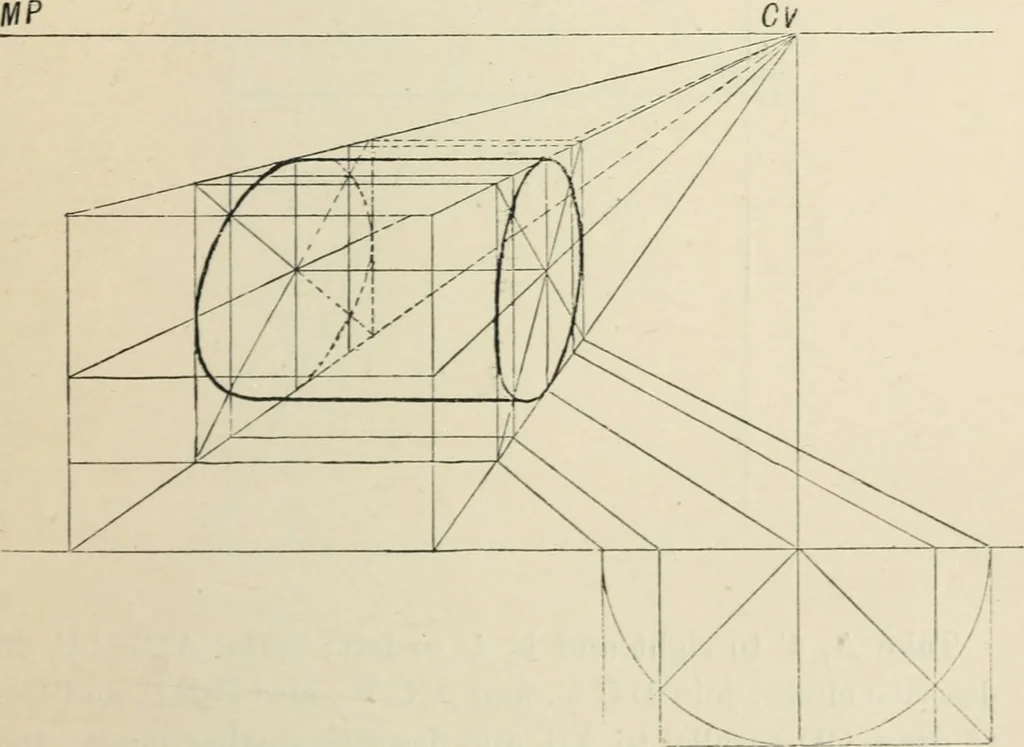

plained;then draw the hexagons, one on G.P., the other -4 above it;then join similar angles in each, forming the required hexagon.(Fig.-lS.) THE CYLINDER. 75 Tine Cylinder. The drawing of the cylinder differs from that of the prism,only in the plan. Draw the circles, forming the ends, in theproper… … Fig. 44. 76 DRAWING. Example 2.—Draw a cylinder lying on G.P., 4 to right,having end perpendicular to P.P.. and toucliing it; cylinder 8 long and 3 in diameter.
