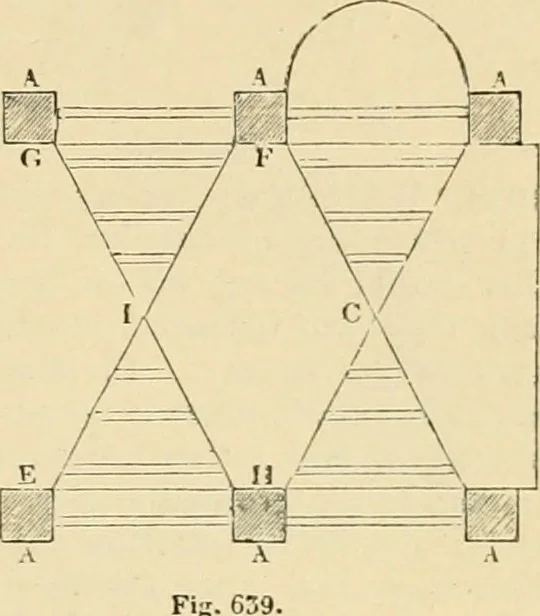

mrning the arch upon the intersections; or the angles are found by the following practi^almethod. The groins meet in the points I, C (Jiff. 6S9.), upon the boarding of the twogroins. Place the straight edge of a board upon the point I, so as to range over the lineGH on the ])lan Then set up another…
