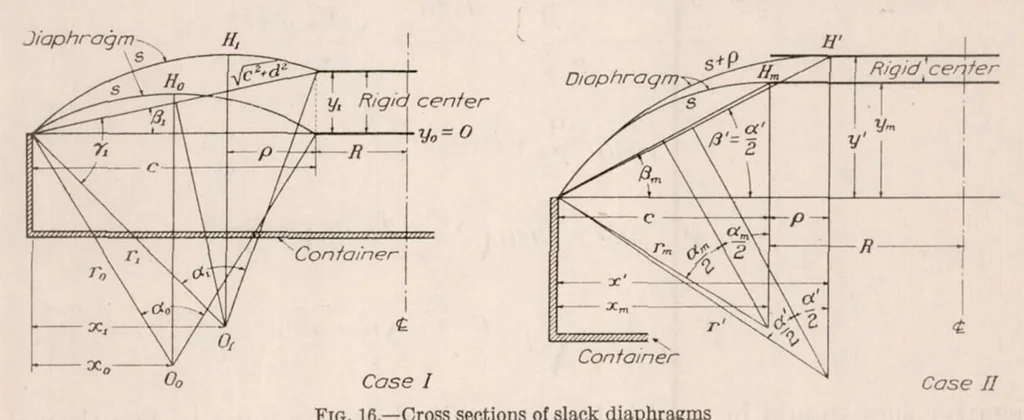

ugh H. The problem therefore resolves itself into finding the position of the point or the value of p, for different deflections. In any specific problem there are given the values of the radius of the rigid center, c the distance from the rim to the edge of the rigid center when the deflection is… … Fig. 16—Cross sections of slack diaphragms with a concentrated load applied at the center until the material of the diaphragm is in direct tension. The geometrical conditions then obtaining are represented in Figure 18, B. Since p = 0, the cross section is straight and the length s of the flexible…
