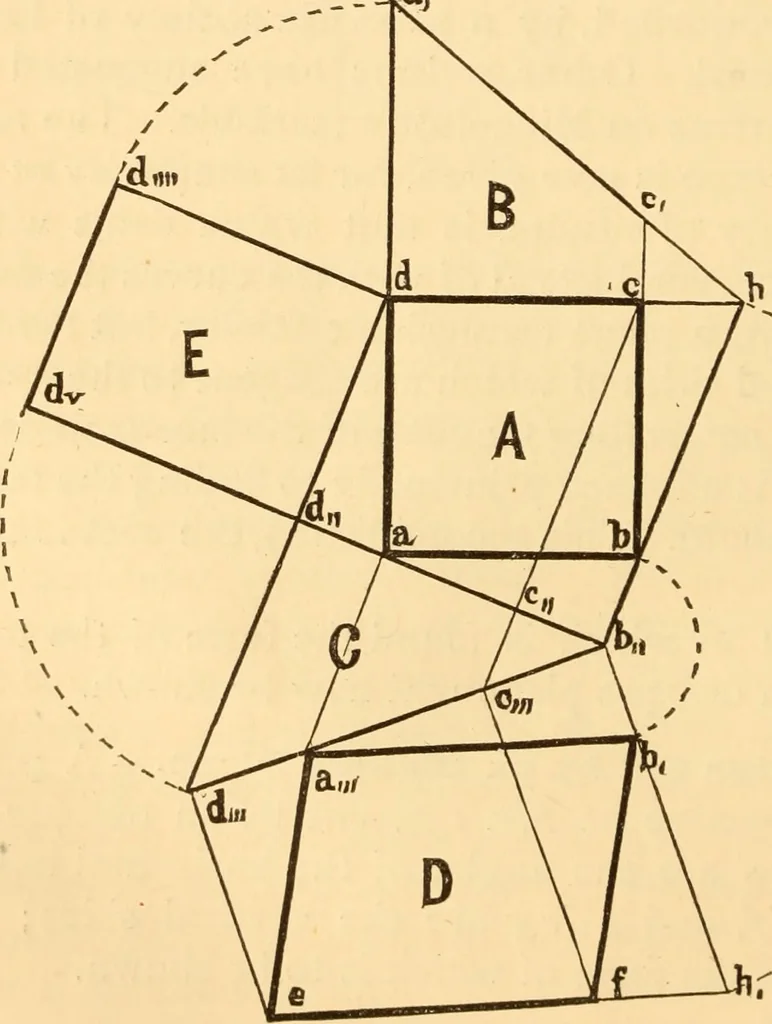

Fig. 139. and size of the base, abed, of the prism shown in Fig, 139.Make c, and dd^ respectively equal to the actual heights at .4 … Fig. 140. cf and de^ Fig. 139 ; the lines dd^ and ee^ being set up per-pendicular to the line de. Extend the lines de and d^ e^ until ILLUSTRATION BY PLANES. 261 they meet in Jl ; join b and //. Now this line b h is the inter-section of two planes: one, the base, or horizontal plane uponwhich the…
