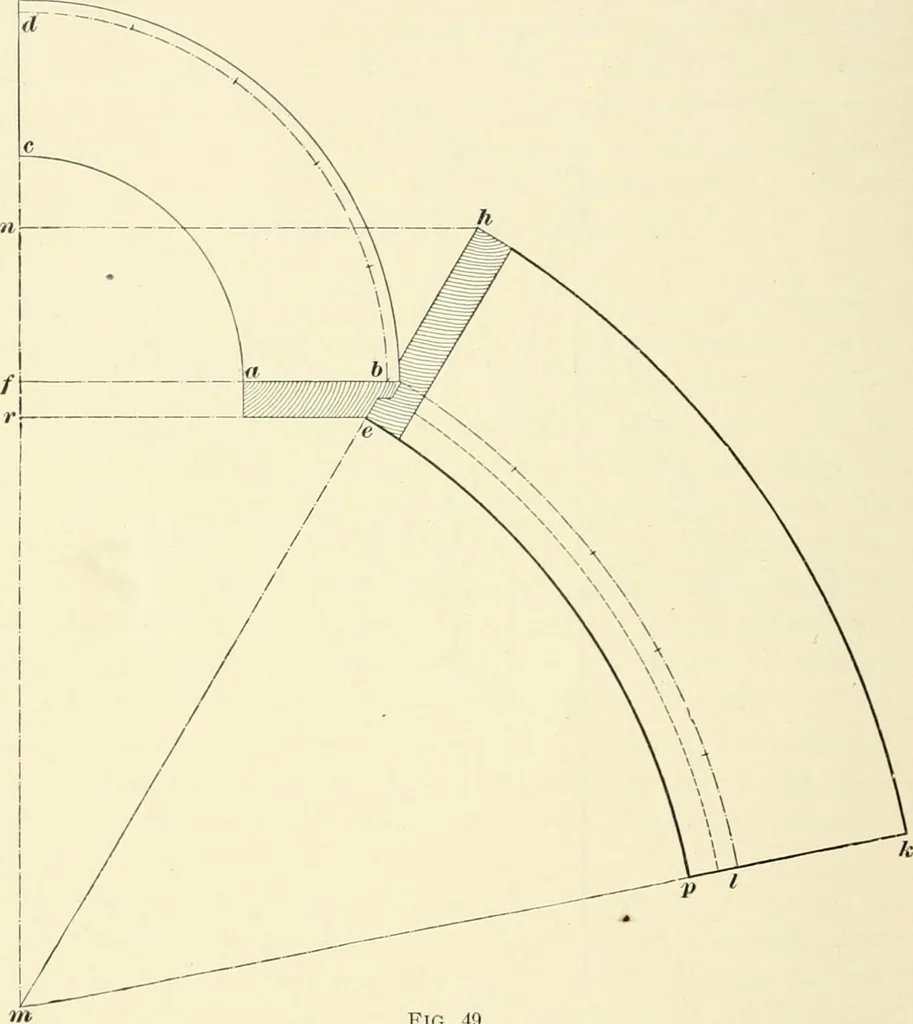

hich will be the convex edge of the soffit; andthrough the points b, s, /, ?-, /, g, b trace a secondcurve, which will be the concave edge. The final direc-tions and explanations given in connection with Figs. 40 and47 apply equally in this case. 70 JOINERY. 10 8^. A circular seat with inclined… … Fig. 49. distance /-/being- equal to the radius of the back of theseat; and/c/ is drawn at right angles to //;. Now, with/as a center, and with a radius /7;, describe the quarter circlebd^ and with a radius fa equal to the radius of the frontedge of the seat, describe the quarter circle a c. Then a…
