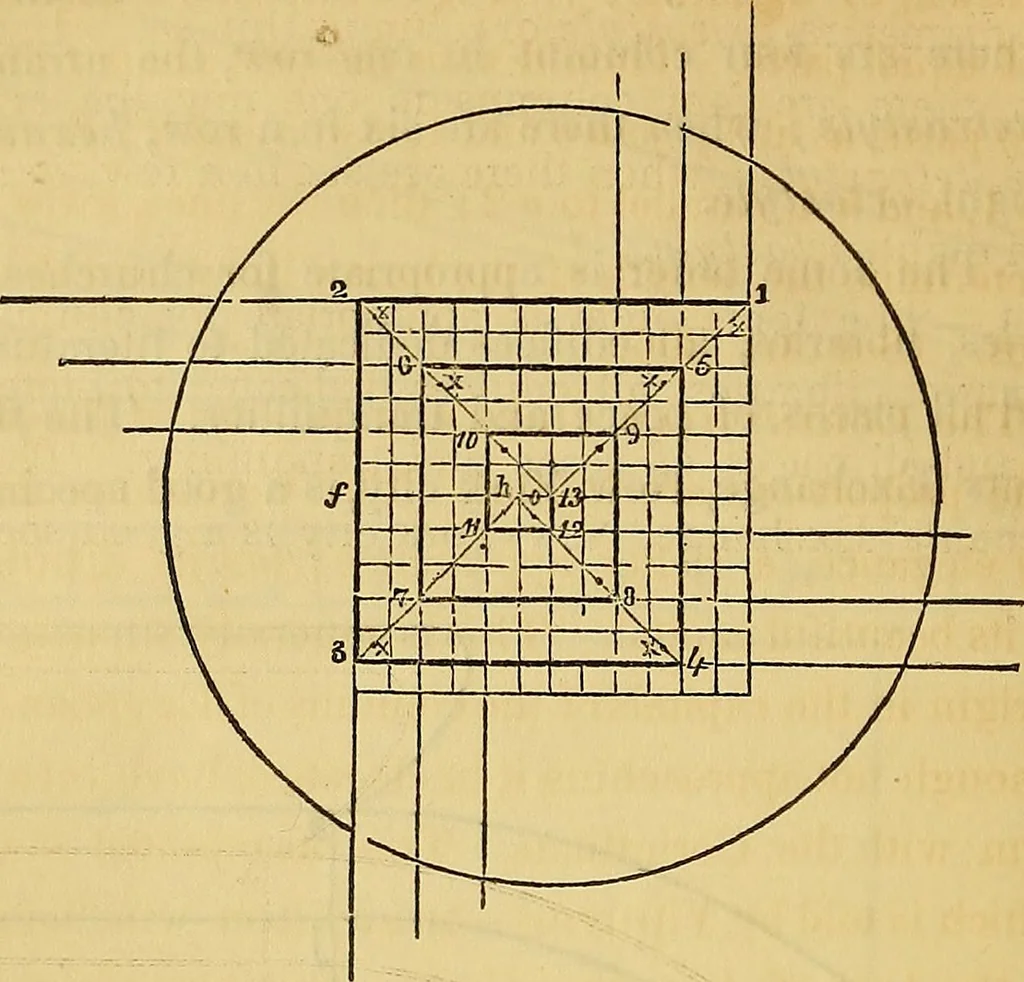

80 AMERICAN HOUSE-CARPENTER. … Fig. 113. 195.— To describe the Ionic volute. Draw a perpendicularfrom a to s, {Fig. 112,) and make a s equal to 20 min. or to f ofthe whole height, a c ; draw 5 o, at right angles to s a, and equalto li min.; upon o, with 2| min. for radius, describe the eye ofthe volute; about o, the centre of…
