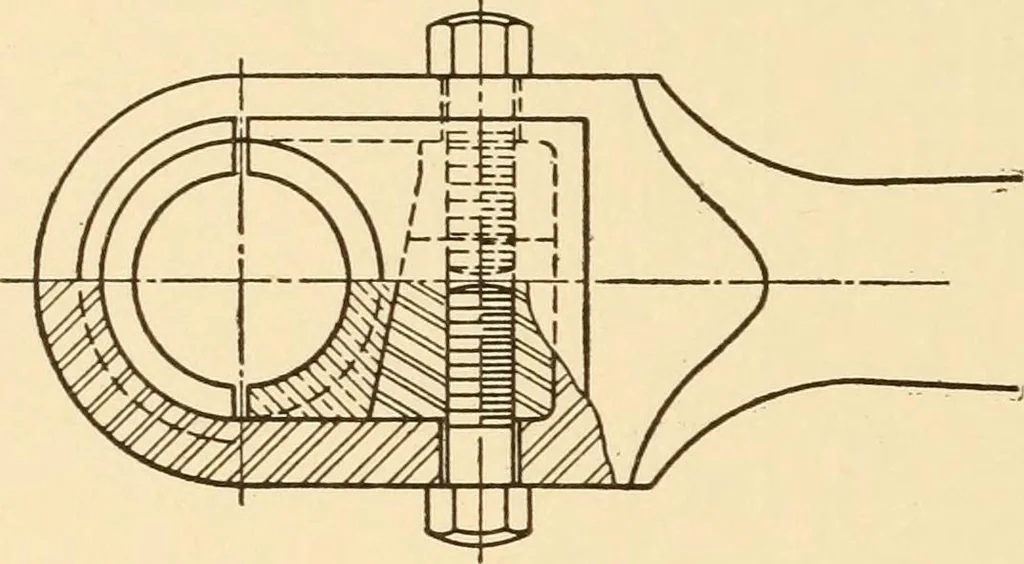

X jinLt ij- Fig. 143. Crosshead. 78 MACHINE DRAWING 116. A connecting rod is used to connect a sliding part of a machinewith a rotating part. They are made of wrought iron, steel, and brass.Forms vary greatly. The ends may be solid or open. Some provision … Fig. 144. Connecting Rod End. is generally made for adjusting the distance between the centers of theends. The rod itself may have a circular, elliptical, rectangular, I-
