Gould, Lucius D., b. 1814. [from old catalog] · New York, A.J. Bicknell & co. · leaf 22

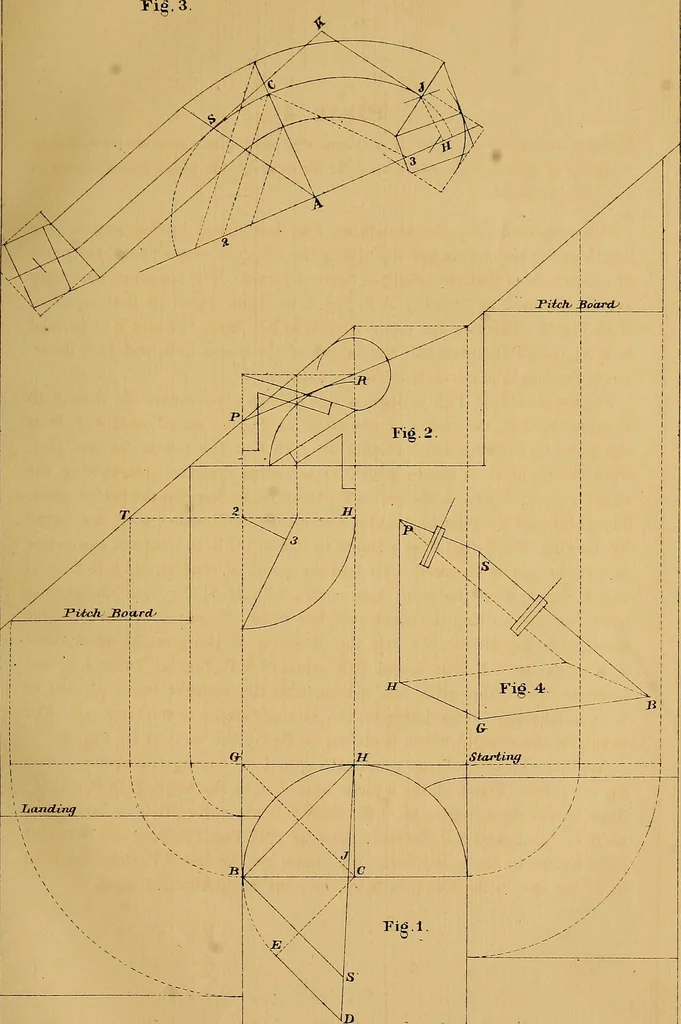

for the straight wood, is shown at P; for the joint at H, Fig. 2. Another example of the practical method of finding the spring bevelsfor the joints: Fig. 4 shows a piece formed to fit the angle B G H, Fig. 1;draw G S at right angles to G B; draw S B the same pitch or inclinationas P T, Fig. 2, and… … Scale /^z indtea = -ifoot. Plate 5 Exhibits the ground, flan of the turn-out at the starting of a staircase, thewreath forming its own easing at the newel. Before drawing the mould it is necessary to know the height of the newel,which is seven inches higher than the short balusters; or, suppose the…
Stair building
