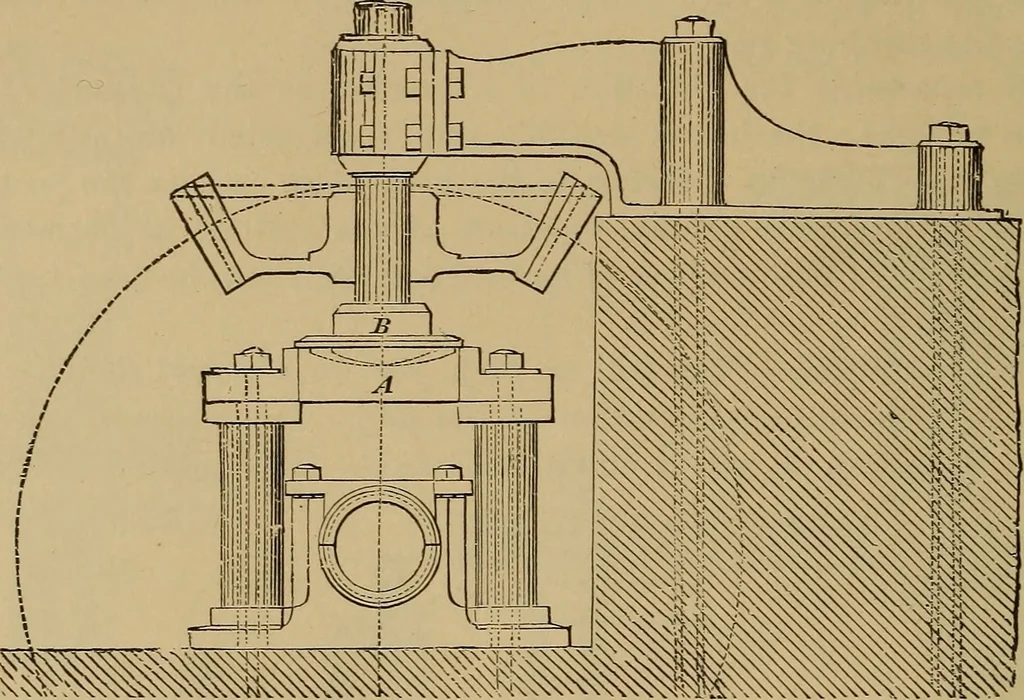

Fig. 586. Fig. 587. 270 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. dotted line. The bed-plate A rests on pillars, between which is placed a pil-low-block or bearing for horizontal shaft. … Fig. 588. Figs. 589 and 590 represent the elevation and vertical section of the suspen-sion bearing used by Mr. Boyden for the support -of the shaft of his turbine-wheels. It having been found difficult to supply oil to the step of such wheels,it was thought preferable by him to suspend the entire…
