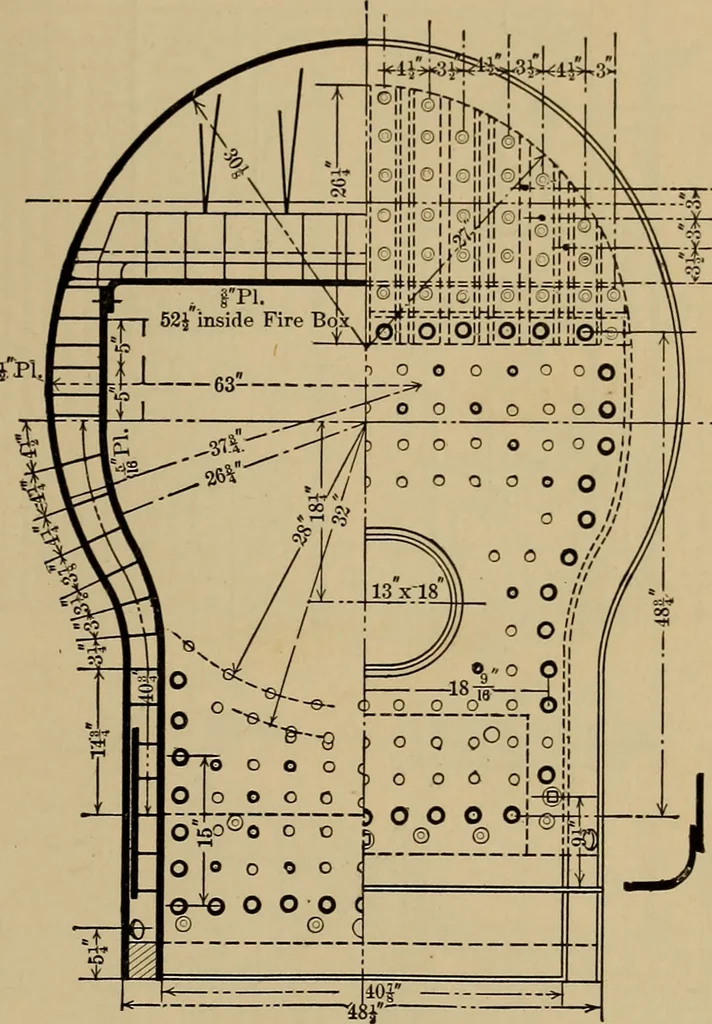

MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. 395 ble on corrugated furnaces adopted by the Board of United States Supervising Inspectors : Corrugations to be 6 inches pitch and H inch deep. 14000 ^ , . ... . . —yy— X T = working pressure in pounds per square inch. T = thickness in inches. D = mean… … Fig. 927. __U_10i^ 14000 14000 = \ inch thickness of metal.* Figs. 926 to 929 are drawingsof a locomotive boiler as designedand constructed by Mr. Buchananfor express passenger locomotivesfor the N. Y. C. and H. E. R. R,Fig. 926 is a longitudinal sectionFig. 927 a transverse section ofone half the…
Mechanical drawing
