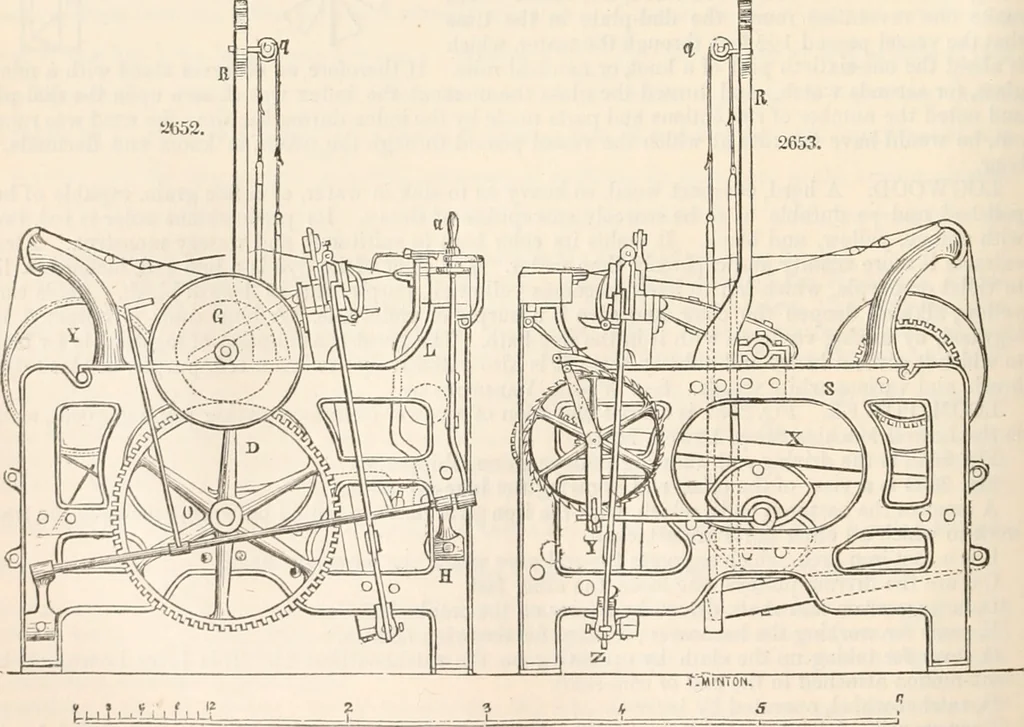

R, piece attached to the protecting-rod, that strikes a lever under the breast-beam, (whenever theshuttle fails of performing its duty,) and stops the loom. S, picker-staff for throwing the shuttle, which receives its motion from a cam on cam-shaft, commuaicated by a treadle and strap T. T, strap… … U, harness-treadles, operated by the cams E E. V, crank-shaft, which gives motion to the lathe or sley. X, sley or lathe, which contains the reed.Y, harnesses for separating the warps while the filling passes through, which are operated by th«Darness-cam E alternately. . LOOM, COUNTERPANE. 287 ZZ…
