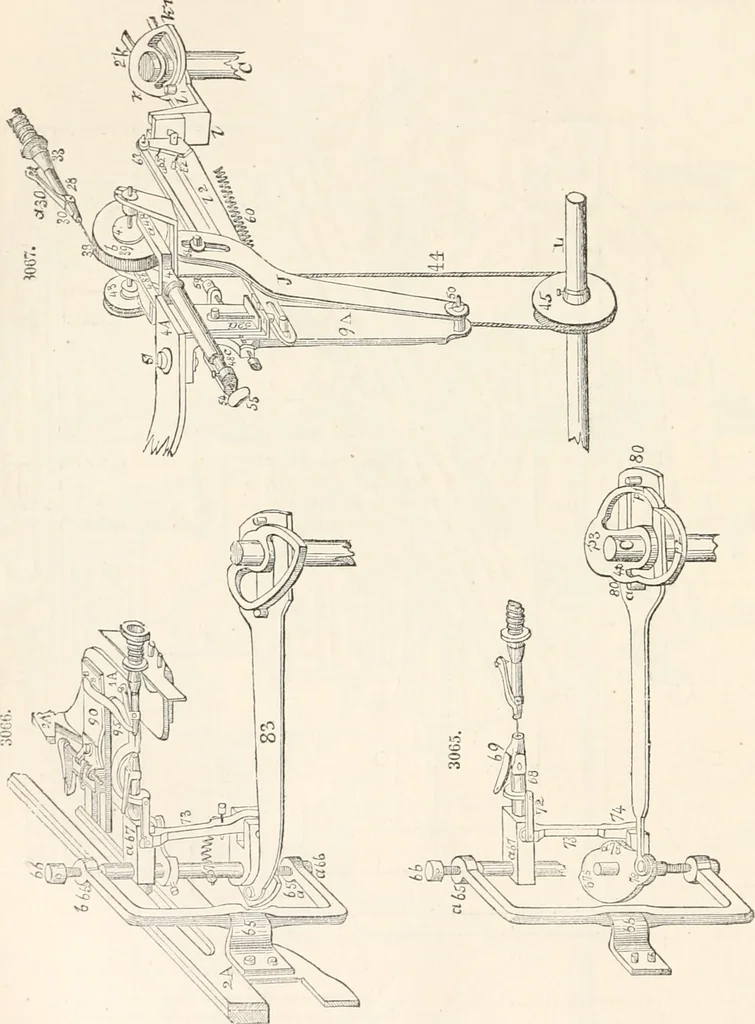

to the pointing chuck, into which chuck the wire enters,previous to a portion of it being cut off to form a pin. A steel cutter 18 is fitted into a groove or60cket in the cutter-stock 19, so as to admit of its being adjusted and fixed therein by screws, and tecause the cutting edge of said cutter… … A small projection or plate 19c extending from the edge of the arm IQd of said lever rests upon theperiphery of the cutter-cam 6, and a stud standing out laterally from said arm 19<i at right angles tothe plane of its motion on its centre 22, rests against the side of said cam b, on which side…
