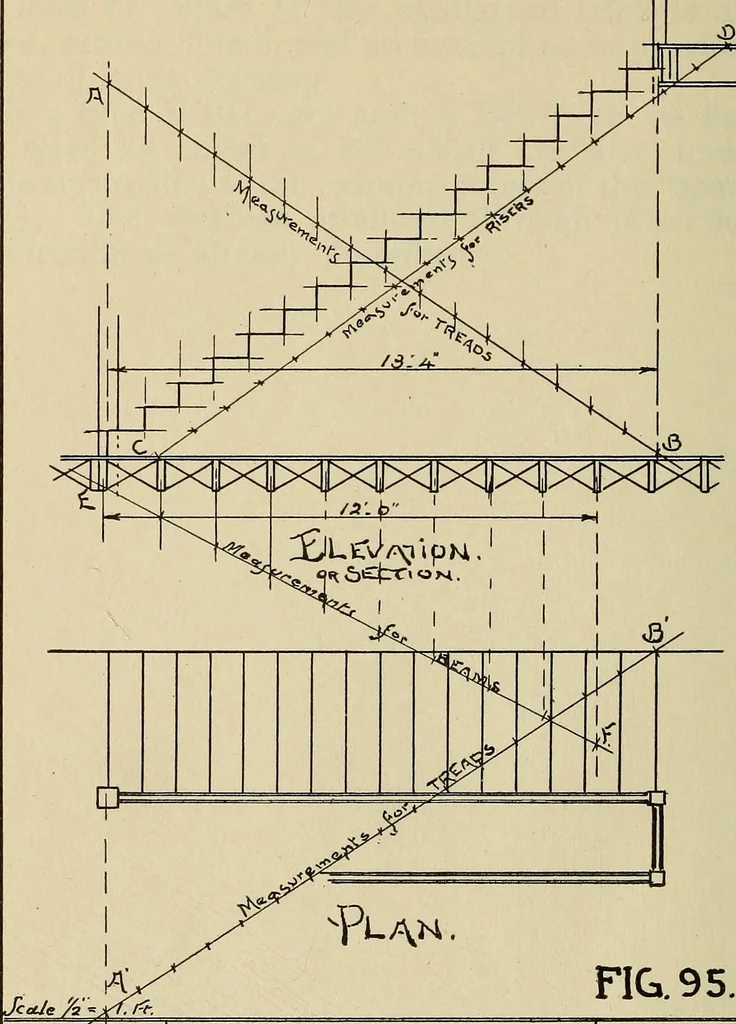

154 ARCHITECTURAL DRAWING of 6-6, and the spring line of same length constitutesa base line for an equilateral triangle. The lines or planes of this equilateral triangle arebi-sected, centres found, and arcs swept as in previousexamples of cyma drawing. H—Is a type of flat ogee arch, a Bell-Arch,… … U.y\y/Q VJ -T. FIG. 95. M.I. t9W> X. GEOMETRIC APPLICATION. Chart XL Fig. 95. Scale j£=l Ft. A Stair-case Lay-out: PLAN and ELEVATION(or Sectional view). Both views are fully laid out by the geometricformula for dividing a given line into proportionateparts. We will give first attention to the…
