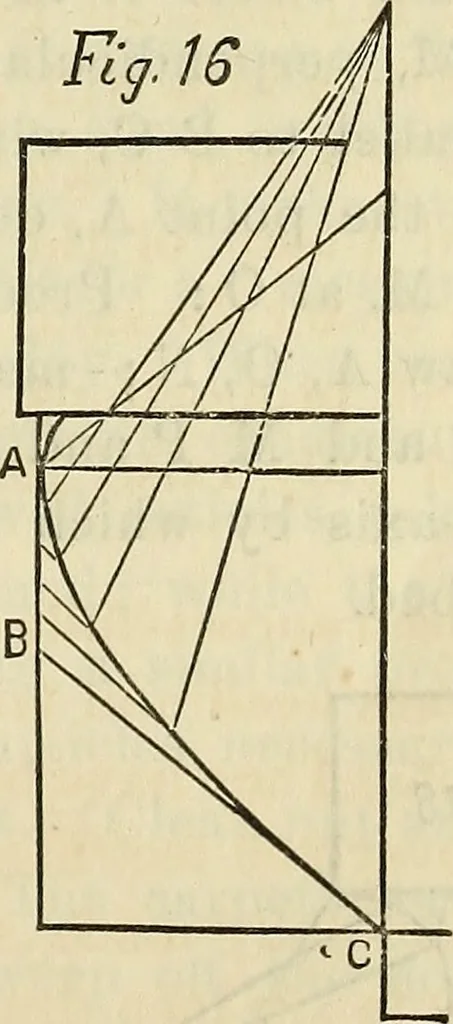

other throughthe divisions of A E ; through the in-tersections draw a curve, which will bethe contour of the required ovolo. The molding will, of course, be natteror quicker according as the point B, theextremity of the tangent B C, is neareror more remote from A, the greatestprojection. In Figure… … Draw A H, parallel to the fillets ; pro-duce the vertical line C H, to K, makingH K, equal to H C, and H I equal to BD ; join A I; divide A I, and A B,each into the same number of equalparts, and through the points of divi-sion in these lines, and through the 18 274 The Architectural Review and…
