Automobile driving self-taught; an exhaustive treatise on the operation, management and care of motor cars (1912)
Russell, Thomas Herbert, 1862-1947 · Chicago, Charles C. Thompson co. · leaf 162

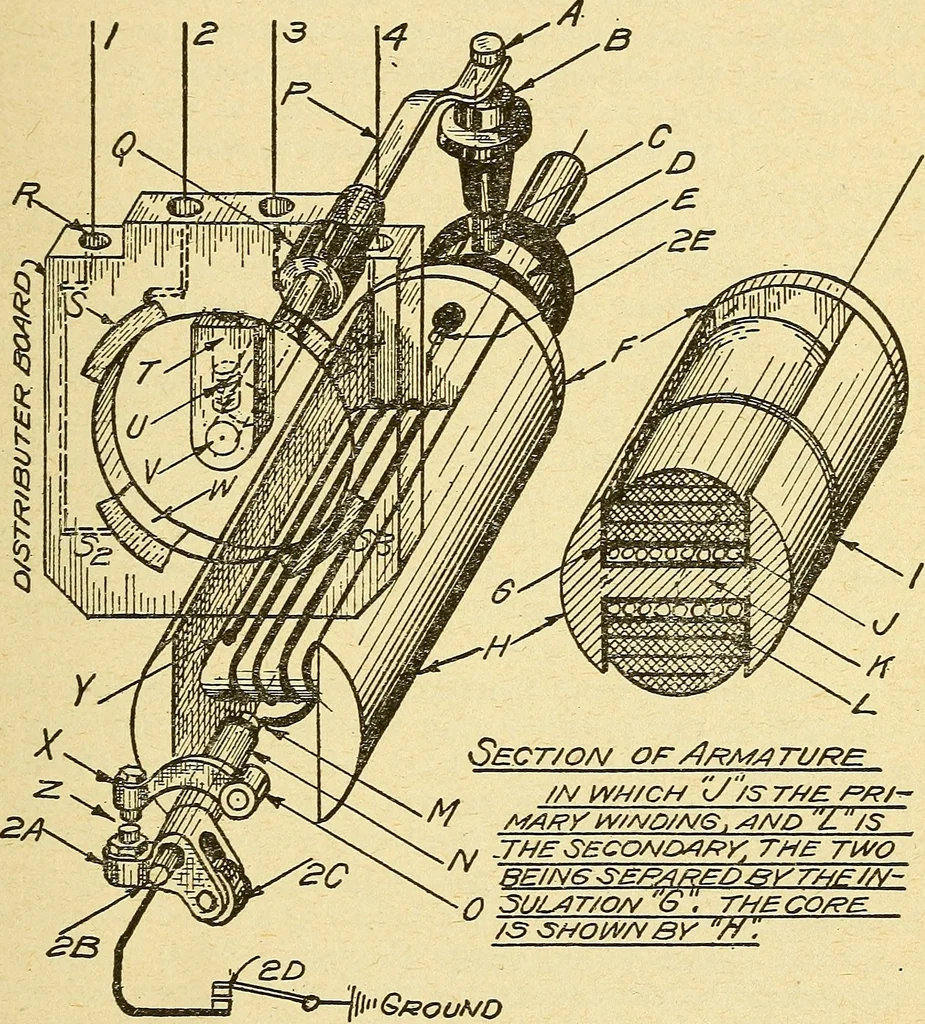

tension current. Thisswitch is generally placed on the dash of the automobile. A primary circuit breaker jaw 2A, which is connected to the primarywinding, and is insulated from the shaft, revolves with the shaft and AUTOMOBILE DRIVING 159 makes intermittent contact with the jaw X at the point Z.… … THE SECONO^f?y, TH£ Tl^O ^/^otA^/wey w: T/YECO/PE Fig. 1.—Typical True High Tension Type Magneto Showing Con-struction and Circuit in Diagrammatic Form. completed through the ground. The opening and closing of the jawsis accomplished by means of a stationary cam which acts on the camroller 20, the…
