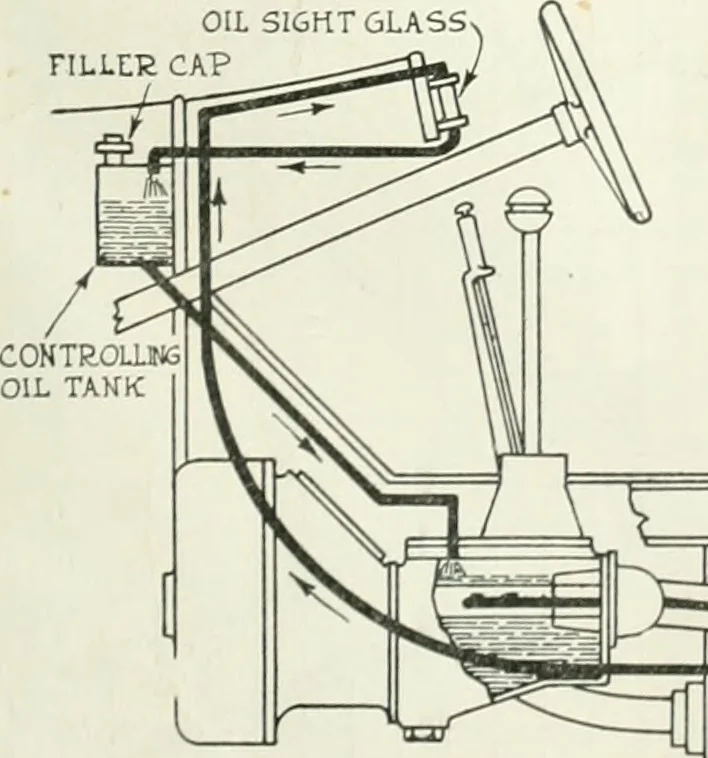

e weight being 1.5 lb. A transmission and drive lubricating system was ex-hibited by the Merchant & Evans Co. A gear type pumpis located in the rear axle housing, an oil reservoir on theforward side of the dashboard and a sight feed or circu-lation indicator on the instrument board. The oil… … Fig. 3—Splitdorf automatic advance coupling tendency for the oil to flow toward the rear by gravityand when it is first started up the oil level in the differ-ential housing is somewhat above normal. As soon as thecar is started the pump delivers some of this oil throughthe circulation indicator to…
