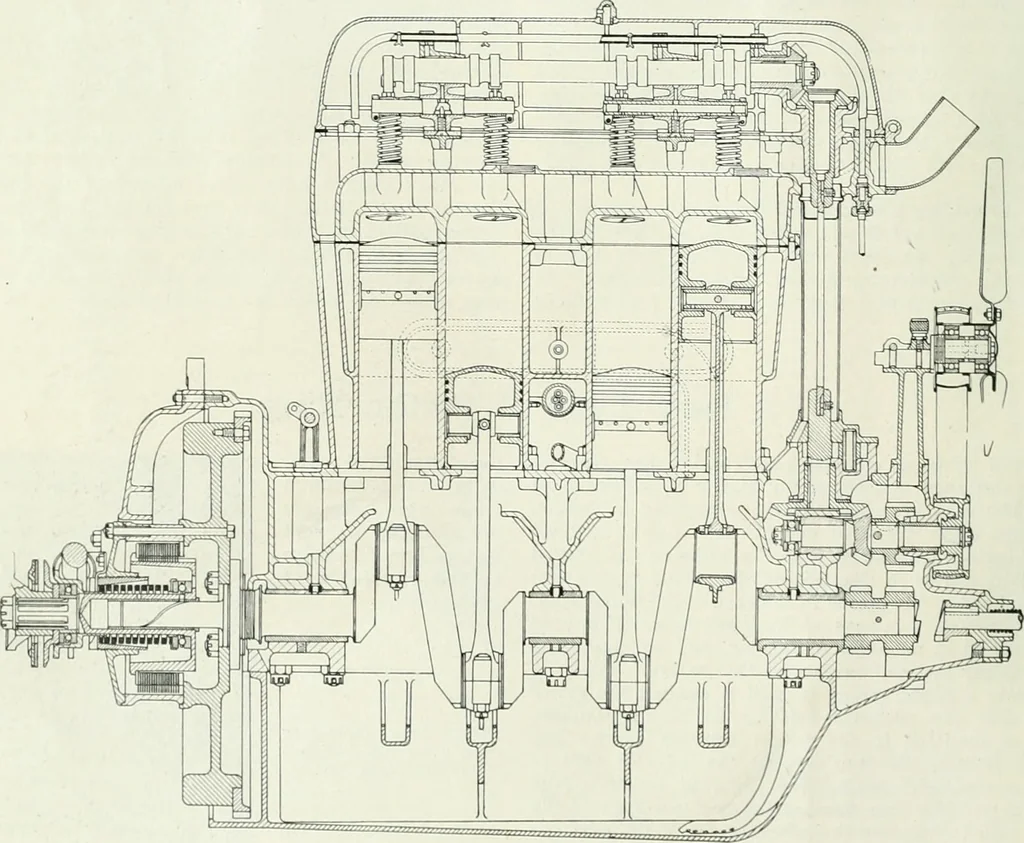

to pro-jections on the rockers situated midway in the length ofthe latter; the rockers are, in fact, of inverted T shapewith the cams applying to their single member. A somewhat involved form of drive is used for the cam-shaft. First there is a silent chain which runs on threesprockets, on… … Longitudinal section of Wolseley 15-hp. (3% * 5% in.) engine, showing spring blade camshaft drive January 6, 1921 AUTOMOTIVE INDUSTRIES THE AUTOMOBILE 21 bevel pinion the primary gear wheel of the oil pump. Atthe upper end of the driveshaft another bevel gear mesheswith one on the front end of the…
