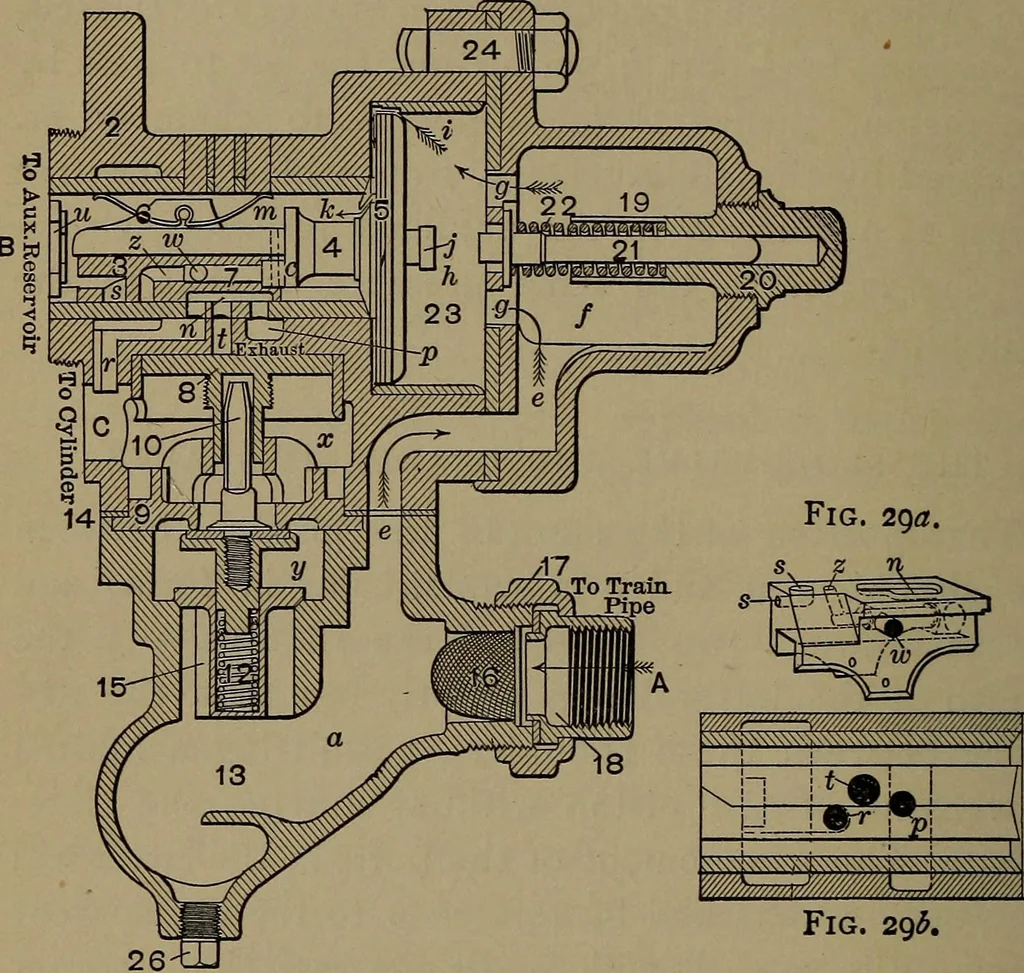

thepiston 4, and extends into a suitably made recess inthe slide-valve, opening and closing port z in theslide-valve. Under ordinary conditions of operatingthe brakes, by a slight reduction of pressure in thetrain-pipe the movement of piston 4 in cylinder h islimited to the distance between the… … Fig. 29^. Fig. 29.—Quick Action Triple Valve. length of cylinder h if a rapid discharge of 10 to 12pounds pressure or more is made from the train-pipe. GRADUATED APPLICATION OF THE BRAKES. To apply the brakes gently, a slight reduction of 6to 8 pounds pressure in the train-pipe is made, caus-ing…
