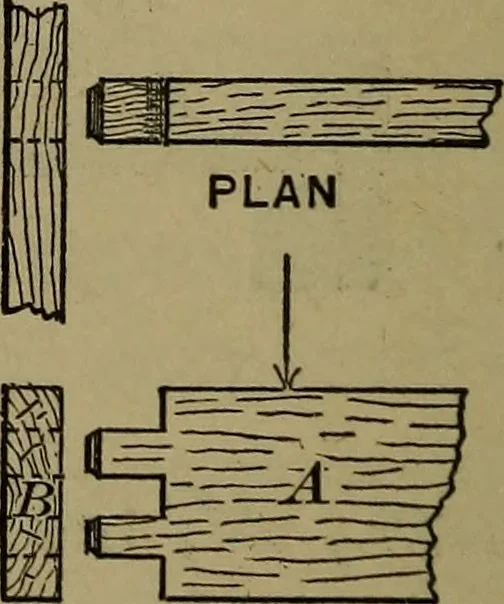

214. When one horizontal timber meets another, it is acommon practice, if the proportions of the pieces are favorable,to employ a double mortise and tenon, Fig. 252, A being ITig. SOI ill Fig. Q^S \^M … ELEVATION. supported by B, This method cannot be recommended, how-ever, because B is very much weakened by the mortises.With reference to B only, the best place for the mortise is onthe neutral axis (in the center of the timber), while with refer-ence to A only, the tenon should be on its lower…
