Hawkins, N. (Nehemiah), 1833- · New York : Theo. Audel · leaf 323

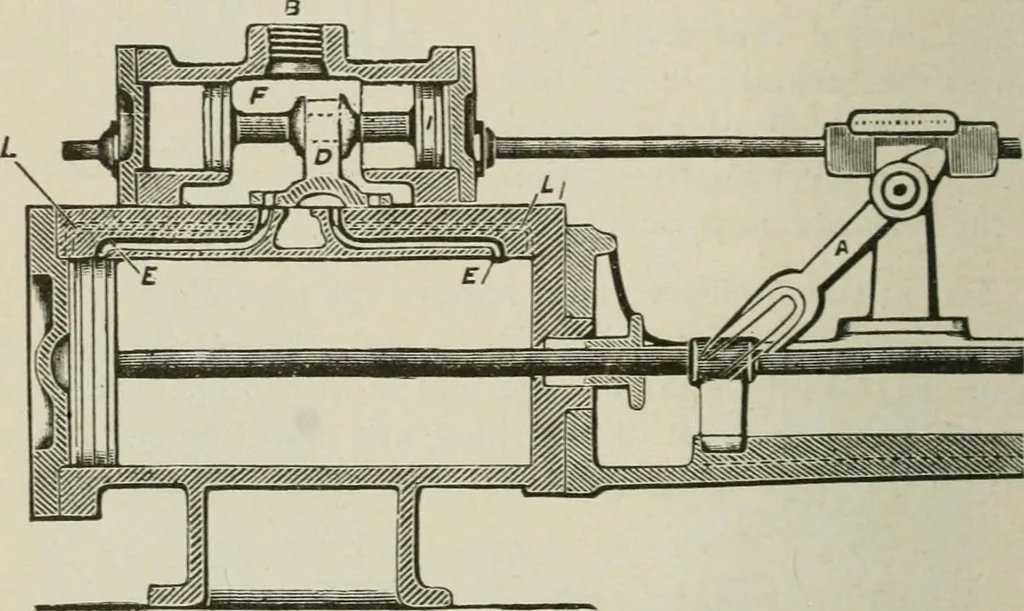

umps a7id Hydraulics. port leading to the end of the valve chest farthest from thepiston. Connect the horizontal rod to the bottom of thependulum lever. Then remove the lever from the auxiliaryvalve stem and replace the bonnet and pendulum lever,shown by dotted lines. The length of the stroke may… … Fig. 292. The accompanying engravings illustrate the cylinder valvesand valve motion of the Burnham single cylinder pump. Fig,294 is a plan of the main cylinder valve face, having the samearrangement of ports as the cylinder shown in Fig. 293. A longitudinal section of the steam cylinder is shown…
Hydraulic machinery · Pumping machinery
