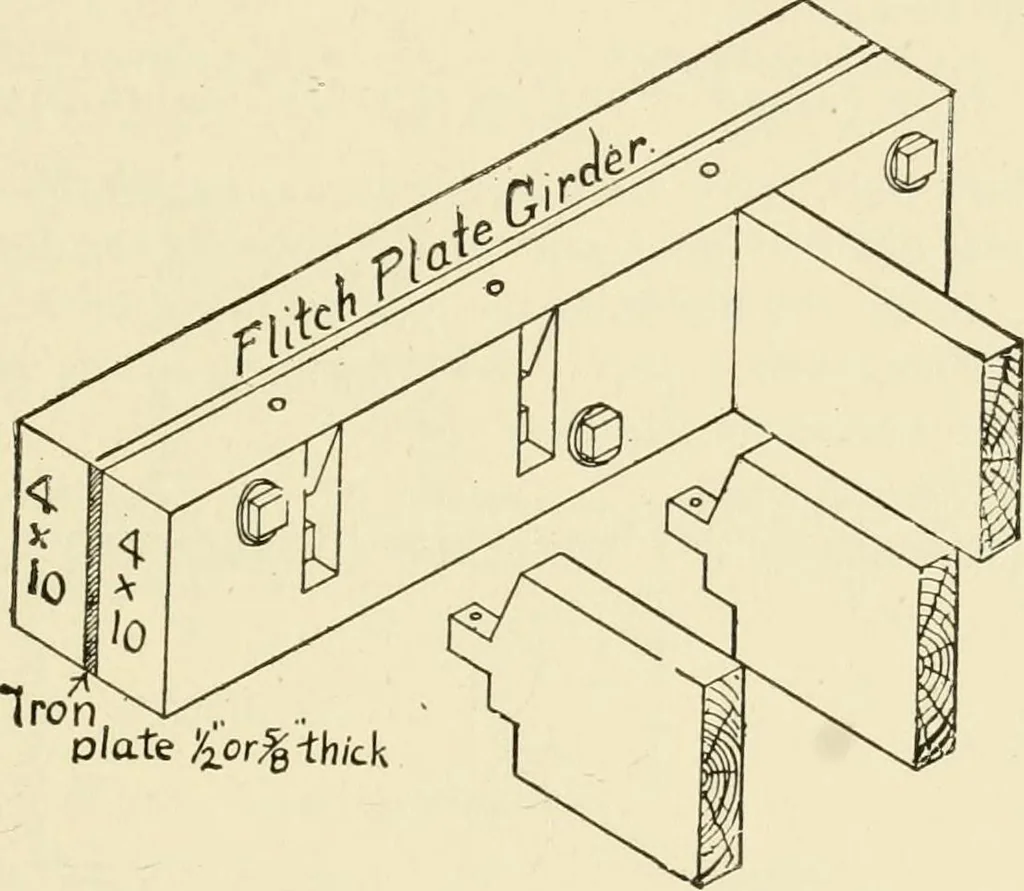

lates over the back ofthe beam. The hanger is designed to be fastened to the trimmer byspikes. 59. Flitch Plate Girders.—It sometimes occurs in dwellingsthat it is necessary to use very long trimmers or headers around stairwells, and in most cases it is desirable that they shall be of the samedepth… … Fig. 51. girder, which is a beam built up of two pieces of timber bolted toeach side of a steel beam or plate, as shown in Fig. 51. For such beams as may be required in dwellings a piece of boileriron plate, of the same length and depth as the timber, and from |to \ inch thick, will generally…
