Teachers' manual for freehand drawing in Intermediate schools : intended to accompany the drawing-books for intermediate schools (1878)
Smith, Walter, 1836-1886 · Toronto, A. Miller · leaf 92

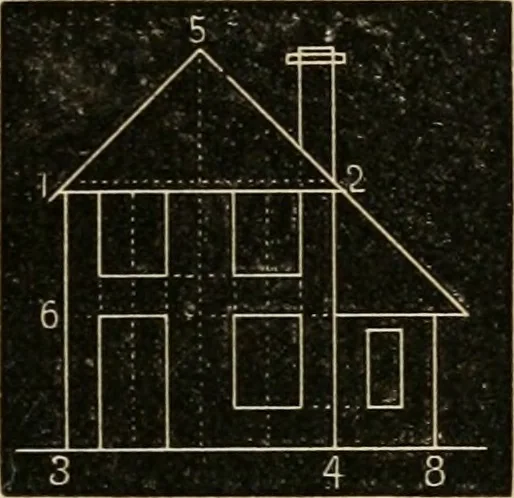

ards, one-half of its length, to 5.Draw the ohliqtie lines for theroof. Divide 1 2 into ci;:;lit equaljiarts, and from the points of di-vision draw downwards line; par-allel with the sides of the square.Divide 1 (i into thirds, the lowerpoint of division <;ivins the bot-tom of the upper windows.… … DRAWING-BOOK EXERCISE XIV. Front-Elevation of a Toy-House. Directions.—Draw a vertical line, 1 2, and divide intothree equal parts at 3 and4. Tlirough 1, 2, 3, and 4draw horizontal lines atliird longer than 1 2. Draw,)!) and (5 10, and add the di-agonals of the oblong; alsothe vertical line ;…
Drawing
