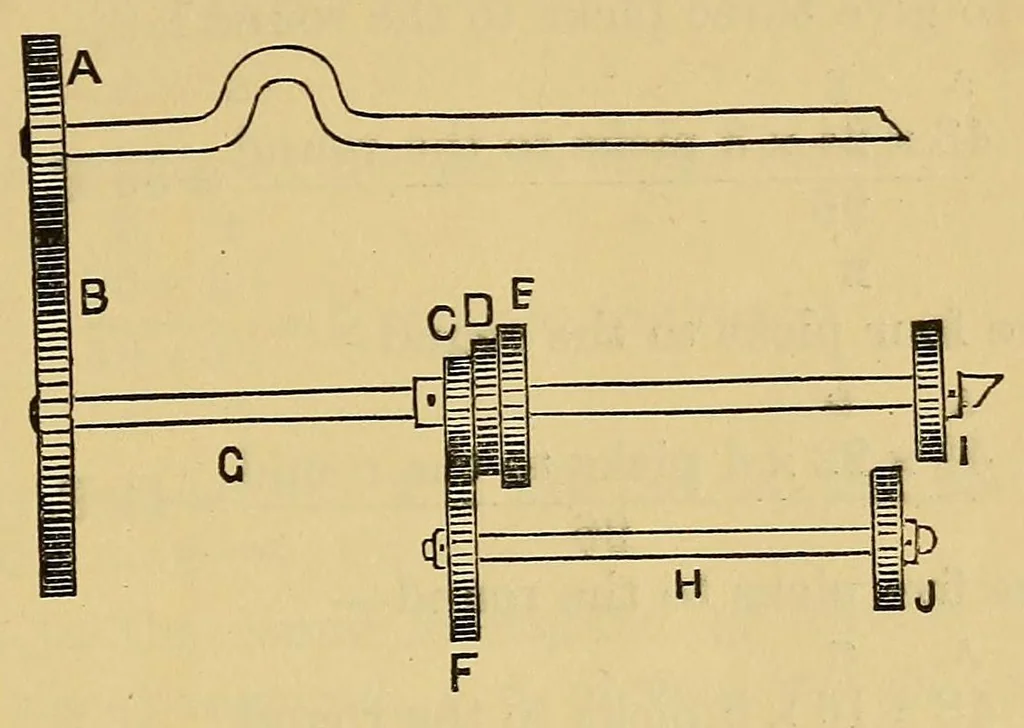

47 LOOM CALCULATIONS. FiiT. 8 illustrates the train of wheels and methods of driving. Fig. 8. … A is the crank shaf b wheel driving the bottom shafts wheel B. Underneath the loom, fixed to the bottom shaft Gr, are three wheels, C, D, and E, cast in one piece. The shaft H is a countershaft which carries the tappets, and is fixed just beneath the shaft G. Any of the three wheels, C, D, and E,…
