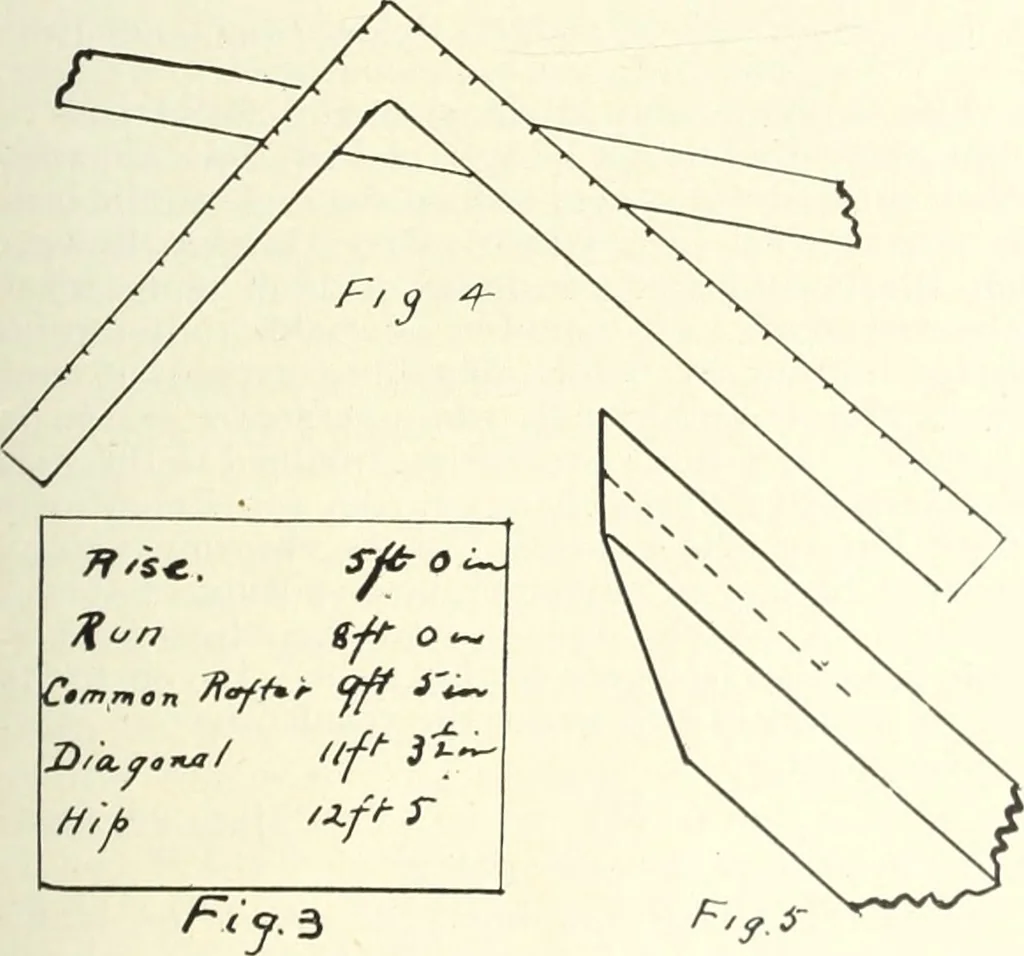

e from 5 feet to 11 feetinches we get 12 feet 5 inches, which is the length ofthe hip. Take care to put all these measurements down onthe piece of board previously mentioned, as they areeasily forgotten. To mark out the hip rafter, takeyour square, place on scantling (broad side), withlengths 5… … Figs. 3, 4 and 5—Getting bevel cuts on rafters with a steel square. foot 5 inch side of square. In measuring out thelength of the hip it must be thoroughly understoodthat in roof-framing you work from centres all thetime; therefore, you must measure the length of thehip from the centre (see Fig.…
